Description
General part information

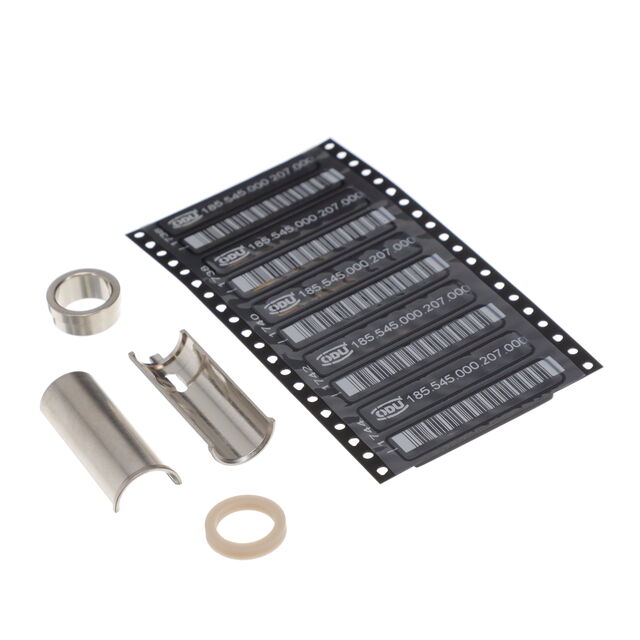

S12K0C-P10PJH0-9500
10 Position Circular Connector Plug, Male Pins Crimp
Technical Specifications
Parameters and characteristics for this part
| Specification | S12K0C-P10PJH0-9500 |
|---|---|
| Applications | Testing Equipment & Measurement, Medical, Military, Industrial |
| Backshell Material | Brass |
| Color | Silver |
| Connector Type | Male Pins, Plug |
| Contact Finish - Mating | Gold |
| Contact Material | Brass |
| Current Rating | 10 A |
| Fastening Type | Push-Pull |
| Features | Backshell |
| Ingress Protection Description | Dust Protected |
| Ingress Protection IP Rating | IP50 |
| Insert Material | Polyetheretherketone, PEEK |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 10 |
| Operating Temperature (Max) | 120 °C |
| Operating Temperature (Min) | -40 °C |
| Orientation Angle | 0 ° |
| Plating | Chrome over Nickel |
| Primary Material | Metal |
| Shell Finish | Chrome, Nickel |
| Shell Material | Brass |
| Shell Size - Insert | 2 |
| Shell Size - Insert | 2 |
| Shielding | Shielded |
| Termination | Crimp |
| Voltage Rating | 300 VAC/DC |
