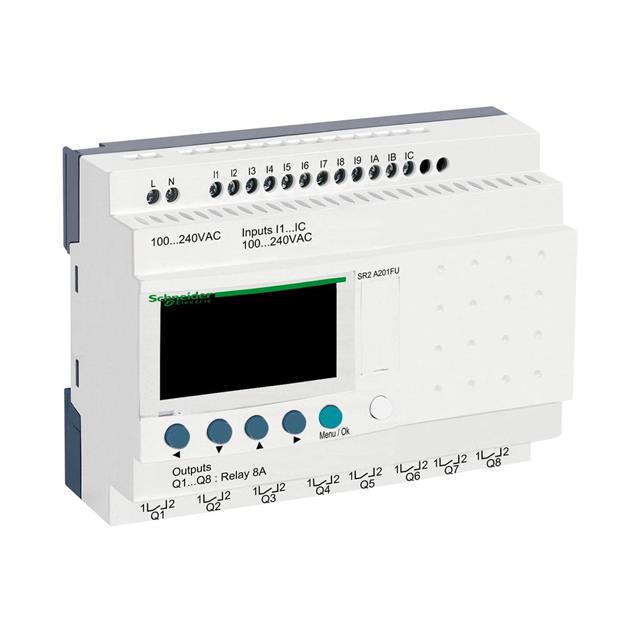

SR2A201FU
ActiveSCHNEIDER ELECTRIC
SMART RELAY, ZELIO LOGIC SERIES, 12 DISCRETE INPUTS, 8 RELAY OUTPUTS, 100 TO 240 VAC
SR2A201FU
ActiveSCHNEIDER ELECTRIC
SMART RELAY, ZELIO LOGIC SERIES, 12 DISCRETE INPUTS, 8 RELAY OUTPUTS, 100 TO 240 VAC
Description
General part information
SR2A201FU
Programmable Logic Controller (PLC) DIN Rail 100 ~ 240VAC
Technical Specifications
Parameters and characteristics for this part
| Specification | SR2A201FU |
|---|---|
| Approval Agency | GL, C-Tick, UL, GOST, CSA |
| Expandable | Non-Expandable |
| Ingress Protection | IP20, IP40 |
| Input Types | Digital |
| Mounting Type | DIN Rail |
| Number of Inputs | 12 |
| Number of Outputs | 8 |
| Operating Temperature (Max) | 40 °C |
| Operating Temperature (Min) | -20 °C |
| Output Type | Relay |
| Voltage - Supply (Maximum) | 240 VAC |
| Voltage - Supply (Minimum) | 100 VAC |
| Weight | 0.84 lb |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
