390113-1
ActiveTE Connectivity AMP Connectors

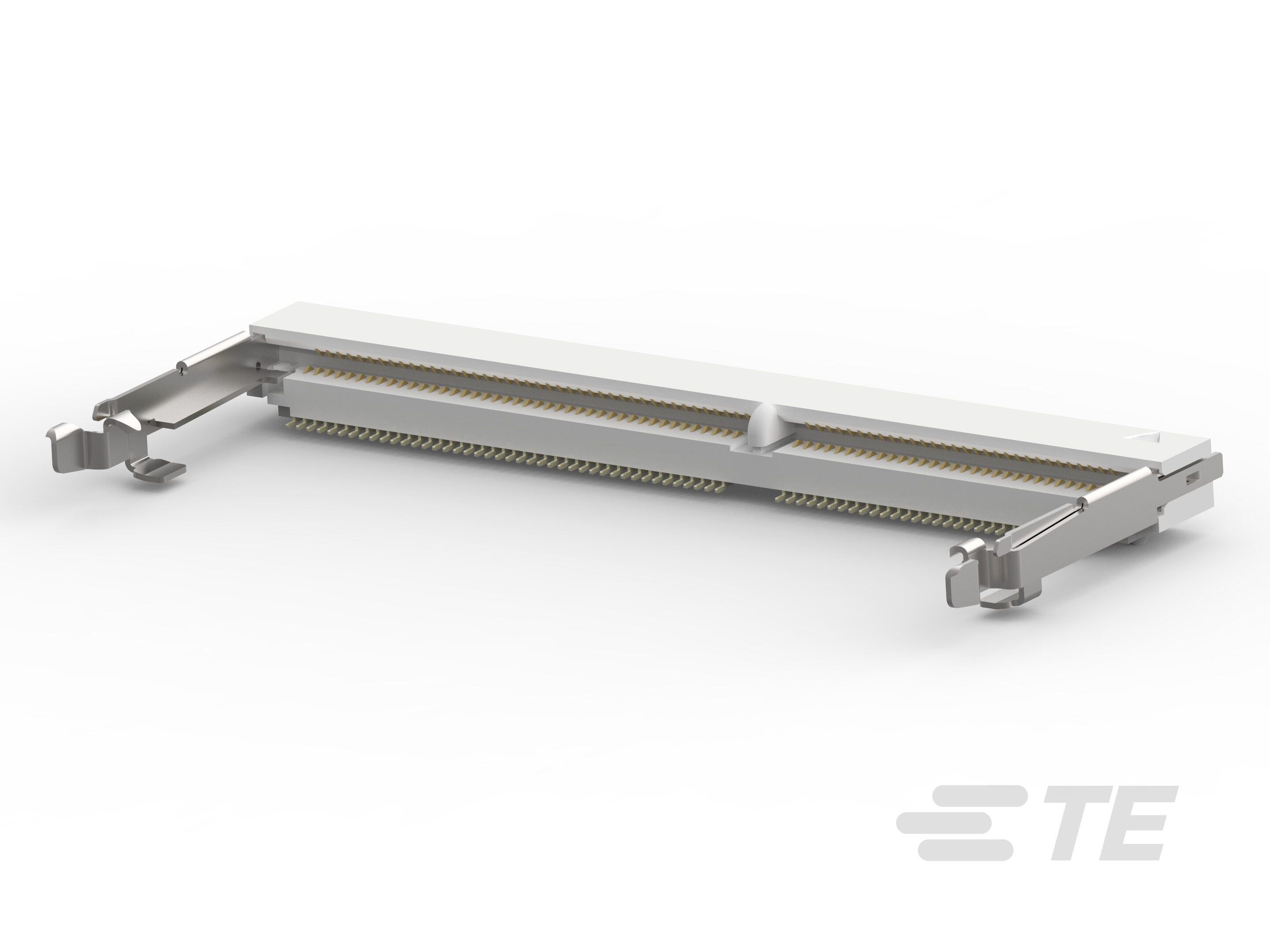

SKT,SODIMM,144P,SDRAM3.3V,STD,TY-S
390113-1
ActiveTE Connectivity AMP Connectors
SKT,SODIMM,144P,SDRAM3.3V,STD,TY-S
Description
General part information
390113-1
Small Outline (SO), 5.2 mm [.205 in] Stack Height, Right Angle Module Orientation, 144 Position, AMP-METRIMATE, SO DIMM Sockets
Technical Specifications
Parameters and characteristics for this part
| Specification | 390113-1 |
|---|---|
| Card Thickness | 0.039 in, 0.05 in |
| Color | Natural |
| Connector Style | SODIMM |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Ąin |
| Features | Board Guide, Latches |
| Height | 0.205 in |
| Insertion Angle | Right Angle |
| Memory Type | SDRAM |
| Mounting Feature | Top, Normal, Standard |
| Mounting Type | Surface Mount |
| Number of Positions | 144 |
