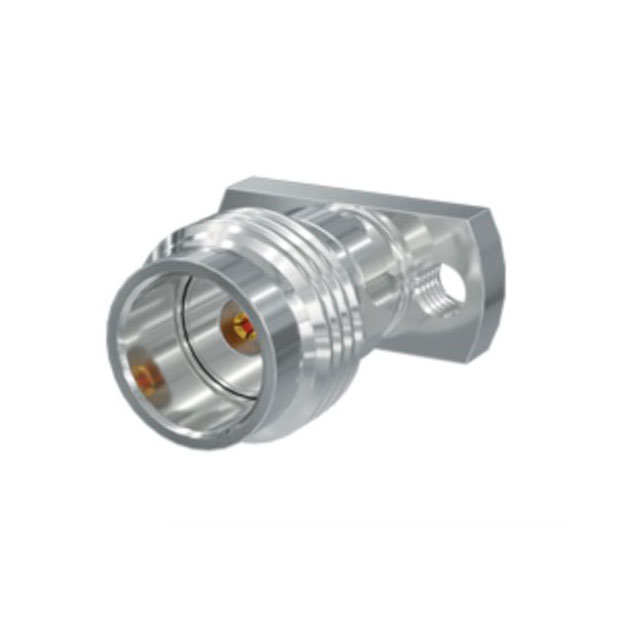

185-J-P-EP-ST-CM-1

Active

Samtec Inc.

CONN 1.85MM JACK COMP MNT

Search across all available documentation for this part.

Active

Samtec Inc.

CONN 1.85MM JACK COMP MNT

Technical Specifications

Parameters and characteristics for this part

CONN 1.85MM JACK COMP MNT

Part	Center Contact Plating	Body Material	Connector Type	Shield Termination	Mating Cycles	Frequency - Max [Max]	Number of Ports	Housing Color	Mounting Type	Connector Style	Dielectric Material	Mounting Feature	Operating Temperature [Min]	Operating Temperature [Max]	Contact Termination	Center Contact Material	Voltage Rating	Impedance
Samtec Inc. 185-J-P-EP-ST-CM-1	Gold	Stainless Steel	Female Socket, Jack	Screw	500	65 GHz	1	Silver	Surface Mount	1.85 mm	Polyetherimide (PEI)	Flange	-65 ░C	165 °C	Compression	Beryllium Copper	200 V	50 Ohms

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

1.85mm Connector Jack, Female Socket 50 Ohms Surface Mount Compression
