HF365/06SF

Active

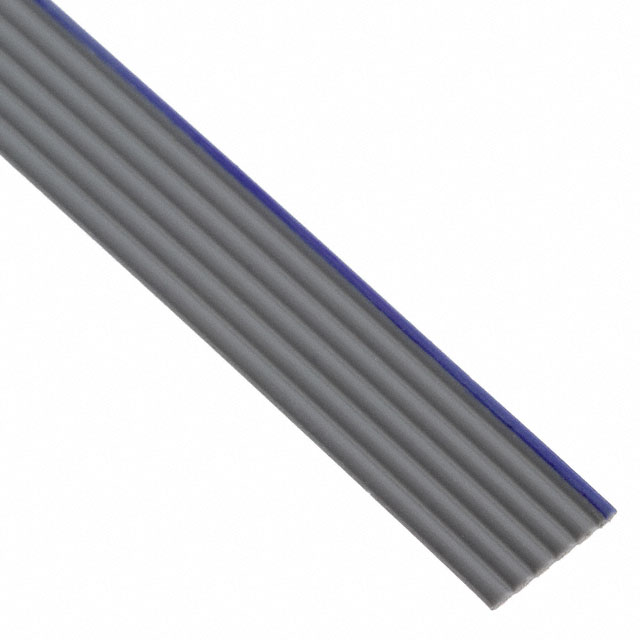

RIBBON CABLE, LSZH ROUND CONDUCTOR FLAT, UNSHIELDED, 6 CONDUCTOR, 28 AWG, 100 FT, 30.48 M

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Technical Data Sheet EN

HF365/06SF

Active

RIBBON CABLE, LSZH ROUND CONDUCTOR FLAT, UNSHIELDED, 6 CONDUCTOR, 28 AWG, 100 FT, 30.48 M

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 6.91
		5	$ 5.74
		10	$ 5.30
		25	$ 4.74
		50	$ 4.37
		100	$ 4.02
	Spool	100	$ 0.68
		200	$ 0.61
		300	$ 0.58
		500	$ 0.54
		700	$ 0.51
		1000	$ 0.49
		2500	$ 0.43
		5000	$ 0.40
Newark	Spool of 100	10	$ 60.22
		25	$ 57.98
		50	$ 54.46
		100	$ 52.85
		250	$ 49.65
		500	$ 48.05

Description

General part information

HF365 Series

The HF365 series unshielded round conductor Flat Cable with tinned stranded copper conductor and a light halogen-free grey polyolefin (PO) jacket. Advantages of LSZH insulation is the low smoke (IEC 61034-2:2005) and low toxicity of combustion gases (NF X 70-100-2:2006), reducing the risk to fire-fighters and reducing the soot and corrosion damage to nearby equipment. The 28AWG wire on 0.05-inch centres permits mass termination to broad line of IDC connectors.

Documents

Technical documentation and resources

Datasheet

Technical Data Sheet EN

Datasheet

Specification	HF365/06SF	HF365 Series

Cable Type	Flat Cable	Flat Cable
Conductor Material	Copper, Tinned	Copper, Tinned
Conductor Strand [custom]	7	7
Conductor Strand [custom]	36 AWG	36 AWG
Features	Zippable, Splice Free	Zippable, Splice Free
First Conductor Mark	Blue	Blue
Insulation Resistance	10 GOhm	10 GOhm
Jacket (Insulation) Material	Polyolefin (PO)	Polyolefin (PO)
Jacket Color	Gray	Gray
Length	-	7.62 - 304.8 m
Length	-	1 - 300 ft
Length [x]	100 ft	10 - 100 ft
Length [x]	30.48 m	3.05 - 30.48 m
Number of Conductors	6	4 - 64
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-40 °C	-40 °C
Pitch [x]	0.05 in	0.05 in
Pitch [x]	1.27 mm	1.27 mm
Ratings	UL Style 21682	UL Style 21682
Ribbon Thickness	0.89 mm	0.89 mm
Ribbon Thickness	0.035 in	0.035 in
Ribbon Width	0.3 in	0.2 - 3 in
Ribbon Width	7.62 mm	1 - 76.2 mm
Ribbon Width	-	0.7 - 1.25 in
Ribbon Width	-	17.78 - 31.75 mm
Ribbon Width	-	20.32 - 81.28 mm
Ribbon Width	-	0.8 - 3.2 in
Ribbon Width	-	0.5 "
Ribbon Width	-	12.7 mm
Ribbon Width	-	25.4 mm
Shielding	Unshielded	Unshielded
Voltage	300 V	300 V
Wire Gauge	28 AWG	28 AWG

Part

Voltage

Shielding

Operating Temperature [Min]

Operating Temperature [Max]

Conductor Strand [custom]

Cable Type

Pitch [x]

Ribbon Thickness

Wire Gauge

Number of Conductors

Ratings

First Conductor Mark

Jacket Color

Features

Conductor Material

Jacket (Insulation) Material

Insulation Resistance

Ribbon Width [x]

Length [x]

Length

Ribbon Width

Ribbon Width [y]

Ribbon Width [custom]

Ribbon Width

HF365/14

300 V

Unshielded

-40 °C

105 ░C

36 AWG

Flat Cable

0.05 in

1.27 mm

0.89 mm

0.035 in

28 AWG

UL Style 21682

Blue

Gray

Zippable

Copper, Tinned

Polyolefin (PO)

10 GOhm

0.7 in

17.78 mm

100 ft

30.48 m

HF365/14 300

300 V

Unshielded

-40 °C

105 ░C

36 AWG

Flat Cable

0.05 in

1.27 mm

0.89 mm

0.035 in

28 AWG

UL Style 21682

Blue

Gray

Zippable

Copper, Tinned

Polyolefin (PO)

10 GOhm

0.7 in

17.78 mm

91.44 m

300 ft

HF365/12SF

300 V

Unshielded

-40 °C

105 ░C

36 AWG

Flat Cable

0.05 in

1.27 mm

0.89 mm

0.035 in

28 AWG

UL Style 21682

Blue

Gray

Splice Free, Zippable

Copper, Tinned

Polyolefin (PO)

10 GOhm

10 ft

3.05 m

304.8 mm

1 ft

15.24 mm

0.6 in

HF365/08SF

300 V

Unshielded

-40 °C

105 ░C

36 AWG

Flat Cable

0.05 in

1.27 mm

0.89 mm

0.035 in

28 AWG

UL Style 21682

Blue

Gray

Splice Free, Zippable

Copper, Tinned

Polyolefin (PO)

10 GOhm

10 ft, 100 ft

3.05 m, 30.48 m

15.24 m

50 ft

10.2 mm

0.402 in

HF365/64

300 V

Unshielded

-40 °C

105 ░C

36 AWG

Flat Cable

0.05 in

1.27 mm

0.89 mm

0.035 in

28 AWG

UL Style 21682

Blue

Gray

Zippable

Copper, Tinned

Polyolefin (PO)

10 GOhm

100 ft

30.48 m

81.28 mm

3.2 in

HF365/64SF

300 V

Unshielded

-40 °C

105 ░C

36 AWG

Flat Cable

0.05 in

1.27 mm

0.89 mm

0.035 in

28 AWG

UL Style 21682

Blue

Gray

Splice Free, Zippable

Copper, Tinned

Polyolefin (PO)

10 GOhm

10 ft

3.05 m

7.62 m, 304.8 mm

1 ft, 25 ft

81.28 mm

3.2 in

HF365/10 100

300 V

Unshielded

-40 °C

105 ░C

36 AWG

Flat Cable

0.05 in

1.27 mm

0.89 mm

0.035 in

28 AWG

UL Style 21682

Blue

Gray

Zippable

Copper, Tinned

Polyolefin (PO)

10 GOhm

10 ft

3.05 m

15.24 m, 304.8 mm

1 ft, 50 ft

0.5 "

12.7 mm

HF365/16SF

300 V

Unshielded

-40 °C

105 ░C

36 AWG

Flat Cable

0.05 in

1.27 mm

0.89 mm

0.035 in

28 AWG

UL Style 21682

Blue

Gray

Splice Free, Zippable

Copper, Tinned

Polyolefin (PO)

10 GOhm

15.24 m

50 ft

20.32 mm

0.8 in

HF365/34SF

300 V

Unshielded

-40 °C

105 ░C

36 AWG

Flat Cable

0.05 in

1.27 mm

0.89 mm

0.035 in

28 AWG

UL Style 21682

Blue

Gray

Splice Free, Zippable

Copper, Tinned

Polyolefin (PO)

10 GOhm

10 ft

3.05 m

15.24 m, 304.8 mm

1 ft, 50 ft

43.18 mm

1.7 in

HF365/50SF

300 V

Unshielded

-40 °C

105 ░C

36 AWG

Flat Cable

0.05 in

1.27 mm

0.89 mm

0.035 in

28 AWG

UL Style 21682

Blue

Gray

Splice Free, Zippable

Copper, Tinned

Polyolefin (PO)

10 GOhm

100 ft

30.48 m

7.62 m, 15.24 m, 304.8 mm

1 ft, 25 ft, 50 ft

63.5 mm

2.5 "

Part	Voltage	Shielding	Operating Temperature [Min]	Operating Temperature [Max]	Conductor Strand [custom]	Conductor Strand [custom]	Cable Type	Pitch [x]	Pitch [x]	Ribbon Thickness	Ribbon Thickness	Wire Gauge	Number of Conductors	Ratings	First Conductor Mark	Jacket Color	Features	Conductor Material	Jacket (Insulation) Material	Insulation Resistance	Ribbon Width [x]	Ribbon Width [x]	Length [x]	Length [x]	Length	Length	Ribbon Width	Ribbon Width	Ribbon Width [y]	Ribbon Width [y]	Ribbon Width [custom]	Ribbon Width [custom]
