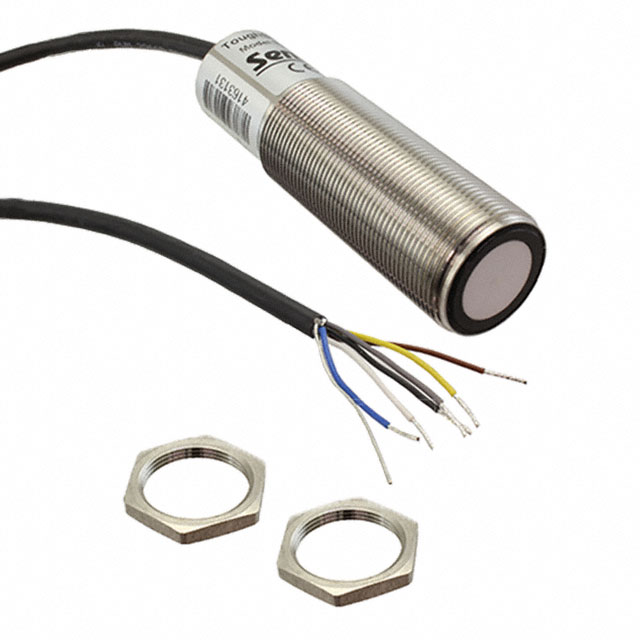

TSPC-30S1-485

Active

Senix Corporation

TOUGHSONIC 14 M30 RS-485

Search across all available documentation for this part.

Active

Senix Corporation

TOUGHSONIC 14 M30 RS-485

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	TSPC-30S1-485	TSPC-30 Series

Indicator [custom]	No Indicator	No Indicator
Ingress Protection	IP68	IP68 NEMA 4X, IP68 NEMA 6P, IP68
Material - Body	Stainless Steel	Stainless Steel
Operating Temperature [Max]	70 °C	70 °C
Operating Temperature [Min]	-40 °C	-40 °C
Output Type	NPN/PNP, Analog Current and Voltage	NPN/PNP, Analog Current and Voltage
Package / Case	Cylinder, Threaded - M30	Cylinder, Threaded - M30
Sensing Distance	14 ft	14 - 145.669 in
Sensing Distance	4.3 m	4.3 - 3700 mm
Sensor Type	Ultrasonic	Ultrasonic
Shielding	Unshielded	Unshielded
Termination Style	Cable Leads	Cable Leads
Voltage - Supply [Max]	30 VDC	30 VDC
Voltage - Supply [Min]	10 VDC	10 VDC

SENSOR PROX ULTRASONIC 910MM CYL

Part	Sensing Distance	Sensing Distance	Sensor Type	Material - Body	Ingress Protection	Shielding	Termination Style	Operating Temperature [Min]	Operating Temperature [Max]	Indicator [custom]	Output Type	Voltage - Supply [Max]	Voltage - Supply [Min]	Package / Case
Senix Corporation TSPC-30S2-485	35.827 in	910 mm	Ultrasonic	Stainless Steel	IP68 NEMA 4X, IP68 NEMA 6P	Unshielded	Cable Leads	-40 °C	70 °C	No Indicator	Analog Current and Voltage, NPN/PNP	30 VDC	10 VDC	Cylinder, Threaded - M30
Senix Corporation TSPC-30S1-232	14 ft	4.3 m	Ultrasonic	Stainless Steel	IP68	Unshielded	Cable Leads	-40 °C	70 °C	No Indicator	Analog Current and Voltage, NPN/PNP	30 VDC	10 VDC	Cylinder, Threaded - M30
Senix Corporation TSPC-30S2-232	35.827 in	910 mm	Ultrasonic	Stainless Steel	IP68 NEMA 4X, IP68 NEMA 6P	Unshielded	Cable Leads	-40 °C	70 °C	No Indicator	Analog Current and Voltage, NPN/PNP	30 VDC	10 VDC	Cylinder, Threaded - M30
Senix Corporation TSPC-30S1K-232	145.669 "	3700 mm	Ultrasonic	Stainless Steel	IP68 NEMA 4X, IP68 NEMA 6P	Unshielded	Cable Leads	-40 °C	70 °C	No Indicator	Analog Current and Voltage, NPN/PNP	30 VDC	10 VDC	Cylinder, Threaded - M30
Senix Corporation TSPC-30S1-485	14 ft	4.3 m	Ultrasonic	Stainless Steel	IP68	Unshielded	Cable Leads	-40 °C	70 °C	No Indicator	Analog Current and Voltage, NPN/PNP	30 VDC	10 VDC	Cylinder, Threaded - M30
Senix Corporation TSPC-30S1K-485	145.669 "	3700 mm	Ultrasonic	Stainless Steel	IP68 NEMA 4X, IP68 NEMA 6P	Unshielded	Cable Leads	-40 °C	70 °C	No Indicator	Analog Current and Voltage, NPN/PNP	30 VDC	10 VDC	Cylinder, Threaded - M30

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

TOUGHSONIC 14 M30 RS-485

Technical documentation and resources
