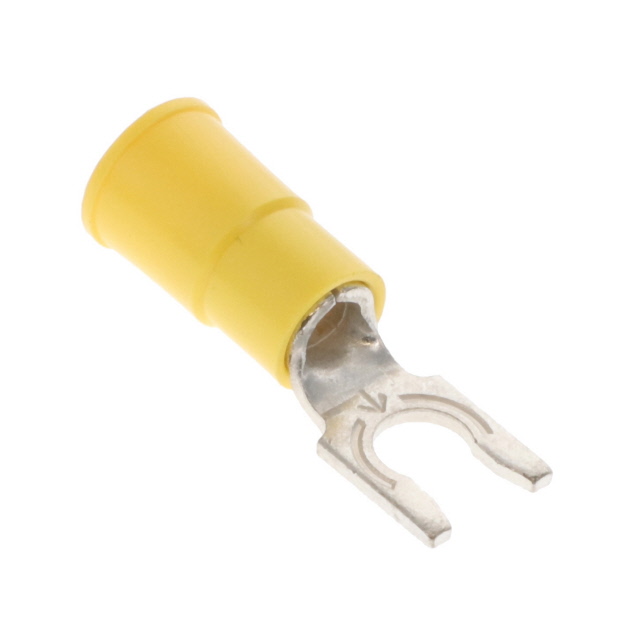

LFV10-10Q
Active3M
LOCKING FORK VINYL INSULATED HIGHLAND BAG 25/BAG
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
LFV10-10Q
Active3M
LOCKING FORK VINYL INSULATED HIGHLAND BAG 25/BAG
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | LFV10-10Q | LFV10 Series |
|---|---|---|
| Color | Yellow | Yellow |
| Contact Finish | Tin | Tin |
| Contact Material | ETP, Copper | ETP, Copper |
| Features | Butted Seam | Butted Seam |
| Insulation | Insulated | Insulated |
| Insulation Diameter | 0.25 " | 0.25 " |
| Insulation Diameter | 6.35 mm | 6.35 mm |
| Length - Overall | 26.16 mm | 26.16 mm |
| Length - Overall [x] | 1.03 in | 1.03 in |
| Length - Ring Center to Termination | 7.11 mm | 7.11 mm |
| Length - Ring Center to Termination | 0.28 in | 0.28 in |
| Length - Termination | 13.97 mm | 13.97 mm |
| Length - Termination | 0.55 in | 0.55 in |
| Material - Insulation | Vinyl | Vinyl |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Stud/Tab Size | 10 Stud | 10 Stud |
| Stud/Tab Size | - | 8 Stud |
| Terminal Type | Snap, Spring | Snap, Spring |
| Termination | Crimp | Crimp |
| Width - Outer Edges [y] | 8.13 mm | 8.13 mm |
| Width - Outer Edges [y] | 0.32 in | 0.32 in |
| Wire Gauge [Max] | 12 AWG | 12 AWG |
| Wire Gauge [Min] | 10 AWG | 10 AWG |
LFV10 Series
LOCKING FORK VINYL INSULATED HIGHLAND BAG 25/BAG
| Part | Terminal Type | Color | Length - Termination | Length - Termination | Insulation Diameter | Insulation Diameter | Material - Insulation | Features | Contact Material | Stud/Tab Size | Width - Outer Edges [y] | Width - Outer Edges [y] | Termination | Mounting Type | Contact Finish | Insulation | Wire Gauge [Max] | Wire Gauge [Min] | Length - Overall [x] | Length - Overall | Length - Ring Center to Termination | Length - Ring Center to Termination | Stud/Tab Size |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Snap, Spring | Yellow | 13.97 mm | 0.55 in | 0.25 " | 6.35 mm | Vinyl | Butted Seam | Copper, ETP | 10 Stud | 8.13 mm | 0.32 in | Crimp | Free Hanging (In-Line) | Tin | Insulated | 12 AWG | 10 AWG | 1.03 in | 26.16 mm | 7.11 mm | 0.28 in | ||
3M LFV10-8Q | Snap, Spring | Yellow | 13.97 mm | 0.55 in | 0.25 " | 6.35 mm | Vinyl | Butted Seam | Copper, ETP | 8.13 mm | 0.32 in | Crimp | Free Hanging (In-Line) | Tin | Insulated | 12 AWG | 10 AWG | 1.03 in | 26.16 mm | 7.11 mm | 0.28 in | 8 Stud |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
LFV10 Series
Yellow 10 Stud Spade Terminal Connector Crimp 10-12 AWG
