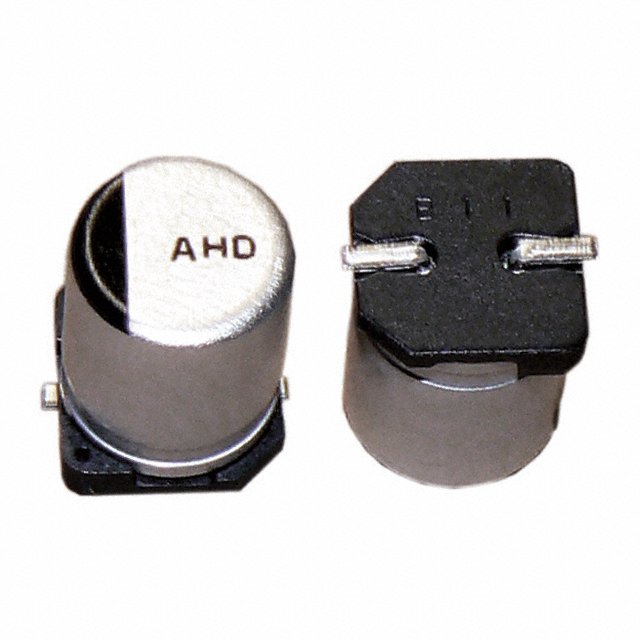

Specification	AHD227M10F24B

Applications	General Purpose
Capacitance	220 µF
ESR (Equivalent Series Resistance)	2.3 Ohm
Height - Seated (Max)	0.402 in
Impedance	1.5 Ohm
Lifetime	5000 Hrs
Mounting Type	Surface Mount
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-40 °C
Package / Case	Radial, Can - SMD
Polarization	Polar
Ripple Current	158.1 mA, 93 mA
Size / Dimension Diameter	0.315 in
Surface Mount Land Length	0.327 in
Surface Mount Land Width	0.327 in
Tolerance	20 %
Voltage - Rated	10 V
