X Series

Part	Connector Type	Voltage Rating	Approval Agency	Current Rating	Number of Connections	Number of Positions (per connection)	Features	Mounting Type	Connector Style	Termination	For Use With/Related Products	Type	Voltage Rating - AC	Actuator Type	Termination Style	Circuit	Operating Temperature (Max)	Operating Temperature (Min)	Color - Actuator/Cap	Actuator Marking	Width	Depth	Number of Ports	Port Direction	Length	Color	Material	Style
SCHNEIDER ELECTRIC SQR42101WH	Female Sockets Receptacle	125 V	cULus UL	15 A	2	3	Tamper Resistant	Outlet Box	NEMA 5-15R	Screw
SCHNEIDER ELECTRIC SQR87CT1BK											X Series Combination	TV/Telephone Socket
SCHNEIDER ELECTRIC SQR31103BK				2.5 A				Panel Mount					120 V	Flush	Screw Terminal	SPST
SCHNEIDER ELECTRIC SQR22601LA				15 A				Flange Panel Mount					120 V	Flat	Screw Terminal	SP3T	40 °C	0 °C	Almond	No Marking
SCHNEIDER ELECTRIC SQWP141005LA							Cover				X Series	Faceplate Frame									10 in	0.28 in	None Open Centers	Straight	4.72 in	Almond Light	Plastic
SCHNEIDER ELECTRIC SQR87T01LA											X Series Combination	Telephone Socket
SCHNEIDER ELECTRIC SQWS140001BK											X Series	Faceplate									2.76 in	0.28 in			4.488 in	Black	Polycarbonate (PC)	Single Gang

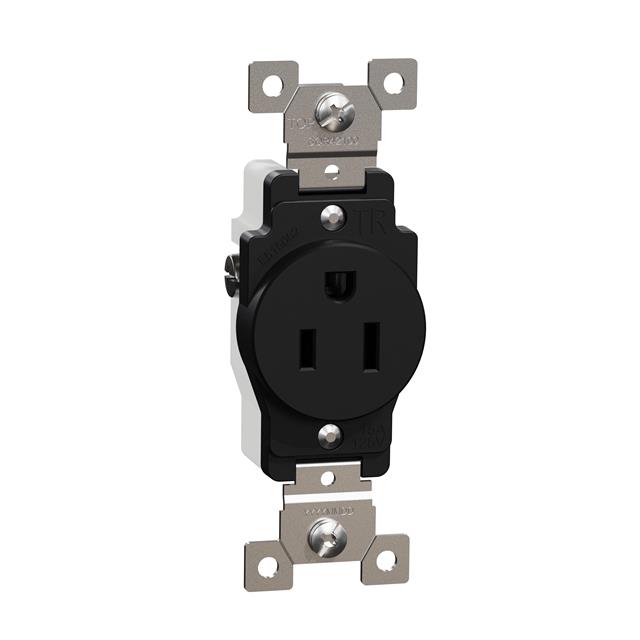

SCHNEIDER ELECTRIC SQR42101BK	Female Sockets Receptacle	125 V	cULus UL	15 A	2	3	Tamper Resistant	Outlet Box	NEMA 5-15R	Screw
SCHNEIDER ELECTRIC SQR44201GY	Female Socket Recepture	125 V	cULus UL	20 A	2	3	Tamper Resistant	Outlet Box	NEMA 5-20R	Screw
SCHNEIDER ELECTRIC SQR51201BK	Female Socket Recepture	125 V		20 A	2	3	GFI (Ground Fault Interrupt)	Outlet Box		Screw
