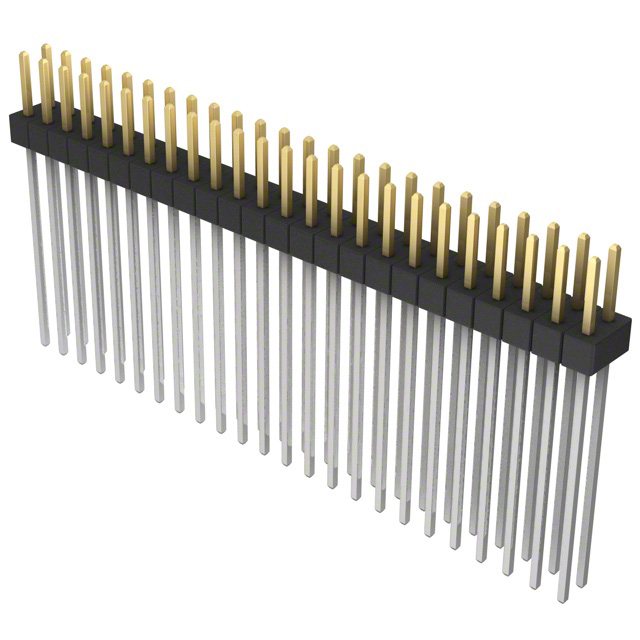

PBC24DAHN

Active

Sullins Connector Solutions

CONN HEADER VERT 48POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

PBC24DAHN

Active

Sullins Connector Solutions

CONN HEADER VERT 48POS 2.54MM

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PBC24DAHN

Connector Type	Breakaway, Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	10 çin
Contact Finish Thickness - Mating	0.25 çm
Contact Finish Thickness - Post	2.54 µm
Contact Finish Thickness - Post	100 µin
Contact Length - Mating	5.84 mm
Contact Length - Mating [x]	0.23 in
Contact Length - Post [x]	20.83 mm
Contact Length - Post [x]	0.82 in
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.1 in
Insulation Height	2.54 mm
Insulation Material	Polybutylene Terephthalate (PBT)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	48
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-65 ░C
Overall Contact Length	1.15 in
Overall Contact Length	29.21 mm
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Shrouding	Unshrouded
Style	Board to Board, Cable
Termination	Solder

PBC24 Series

Part	Pitch - Mating	Pitch - Mating	Number of Positions	Insulation Material	Contact Length - Mating [x]	Contact Length - Mating	Current Rating (Amps)	Contact Material	Operating Temperature [Max]	Operating Temperature [Min]	Number of Positions Loaded	Contact Type	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Overall Contact Length	Overall Contact Length	Connector Type	Contact Shape	Style	Mounting Type	Insulation Color	Shrouding	Termination	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish - Mating	Contact Finish - Post	Insulation Height	Insulation Height	Fastening Type	Material Flammability Rating	Number of Rows	Contact Length - Post	Contact Length - Post	Contact Length - Post [x]	Contact Length - Post [x]	Contact Length - Mating [x]	Overall Contact Length
Sullins Connector Solutions PBC24DAFN	0.1 in	2.54 mm	48	Polybutylene Terephthalate (PBT)	0.23 in	5.84 mm	3 A	Phosphor Bronze	125 °C	-65 ░C	All	Male Pin	2.54 µm	100 µin	24.13 mm	0.95 in	Breakaway Header	Square	Board to Board Cable	Through Hole	Black	Unshrouded	Solder	2.54 mm	0.1 in	10 çin	0.25 çm	Gold	Tin	0.1 in	2.54 mm	Push-Pull	UL94 V-0	2	0.62 in	15.75 mm
Sullins Connector Solutions PBC24DAHN	0.1 in	2.54 mm	48	Polybutylene Terephthalate (PBT)	0.23 in	5.84 mm	3 A	Phosphor Bronze	125 °C	-65 ░C	All	Male Pin	2.54 µm	100 µin	29.21 mm	1.15 in	Breakaway Header	Square	Board to Board Cable	Through Hole	Black	Unshrouded	Solder	2.54 mm	0.1 in	10 çin	0.25 çm	Gold	Tin	0.1 in	2.54 mm	Push-Pull	UL94 V-0	2			20.83 mm	0.82 in
Sullins Connector Solutions PBC24SAGN	0.1 in	2.54 mm	24	Polybutylene Terephthalate (PBT)	0.23 in	5.84 mm	3 A	Phosphor Bronze	125 °C	-65 ░C	All	Male Pin	2.54 µm	100 µin	26.67 mm	1.05 in	Breakaway Header	Square	Board to Board Cable	Through Hole	Black	Unshrouded	Solder			10 çin	0.25 çm	Gold	Tin	0.1 in	2.54 mm	Push-Pull	UL94 V-0	1			18.29 mm	0.72 "
Sullins Connector Solutions PBC24DFDN	0.1 in	2.54 mm	48	Polybutylene Terephthalate (PBT)	0.318 "		3 A	Phosphor Bronze	125 °C	-65 ░C	All	Male Pin	2.54 µm	100 µin	21.29 mm	0.838 in	Breakaway Header	Square	Board to Board Cable	Through Hole	Black	Unshrouded	Solder	2.54 mm	0.1 in	10 çin	0.25 çm	Gold	Tin	0.1 in	2.54 mm	Push-Pull	UL94 V-0	2			10.67 mm	0.42 in	8.08 mm
Sullins Connector Solutions PBC24DFCN	0.1 in	2.54 mm	48	Polybutylene Terephthalate (PBT)	0.318 "		3 A	Phosphor Bronze	125 °C	-65 ░C	All	Male Pin	2.54 µm	100 µin	18.75 mm	0.738 "	Breakaway Header	Square	Board to Board Cable	Through Hole	Black	Unshrouded	Solder	2.54 mm	0.1 in	10 çin	0.25 çm	Gold	Tin	0.1 in	2.54 mm	Push-Pull	UL94 V-0	2			8.13 mm	0.32 in	8.08 mm
Sullins Connector Solutions PBC24SBBN	0.1 in	2.54 mm	24	Polybutylene Terephthalate (PBT)	0.23 in	5.84 mm	3 A	Phosphor Bronze	125 °C	-65 ░C	All	Male Pin	2.54 µm	100 µin			Breakaway Header	Square	Board to Board Cable	Through Hole Right Angle	Black	Unshrouded	Solder			10 çin	0.25 çm	Gold	Tin	0.14 in	3.56 mm	Push-Pull	UL94 V-0	1			5.08 mm	0.2 in
Sullins Connector Solutions PBC24SBEN	0.1 in	2.54 mm	24	Polybutylene Terephthalate (PBT)	0.23 in	5.84 mm	3 A	Phosphor Bronze	125 °C	-65 ░C	All	Male Pin	2.54 µm	100 µin			Breakaway Header	Square	Board to Board Cable	Through Hole Right Angle	Black	Unshrouded	Solder			10 çin	0.25 çm	Gold	Tin	0.14 in	3.56 mm	Push-Pull	UL94 V-0	1	0.5 in	12.7 mm
Sullins Connector Solutions PBC24DACN	0.1 in	2.54 mm	48	Polybutylene Terephthalate (PBT)	0.23 in	5.84 mm	3 A	Phosphor Bronze	125 °C	-65 ░C	All	Male Pin	2.54 µm	100 µin	0.65 in		Breakaway Header	Square	Board to Board Cable	Through Hole	Black	Unshrouded	Solder	2.54 mm	0.1 in	10 çin	0.25 çm	Gold	Tin	0.1 in	2.54 mm	Push-Pull	UL94 V-0	2			8.13 mm	0.32 in		16.51 mm
Sullins Connector Solutions PBC24SFDN	0.1 in	2.54 mm	24	Polybutylene Terephthalate (PBT)	0.318 "		3 A	Phosphor Bronze	125 °C	-65 ░C	All	Male Pin	2.54 µm	100 µin	21.29 mm	0.838 in	Breakaway Header	Square	Board to Board Cable	Through Hole	Black	Unshrouded	Solder			10 çin	0.25 çm	Gold	Tin	0.1 in	2.54 mm	Push-Pull	UL94 V-0	1			10.67 mm	0.42 in	8.08 mm
Sullins Connector Solutions PBC24SGBN	0.1 in	2.54 mm	24	Polybutylene Terephthalate (PBT)	0.318 "		3 A	Phosphor Bronze	125 °C	-65 ░C	All	Male Pin	2.54 µm	100 µin			Breakaway Header	Square	Board to Board Cable	Through Hole Right Angle	Black	Unshrouded	Solder			10 çin	0.25 çm	Gold	Tin	0.14 in	3.56 mm	Push-Pull	UL94 V-0	1			5.08 mm	0.2 in	8.08 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 5.86
		10	$ 5.30
		100	$ 4.64
		500	$ 3.91
		1000	$ 3.49

Description

General part information

PBC24 Series

Connector Header Through Hole 48 position 0.100" (2.54mm)
