NGC4F
ActiveTE Connectivity AMP Connectors

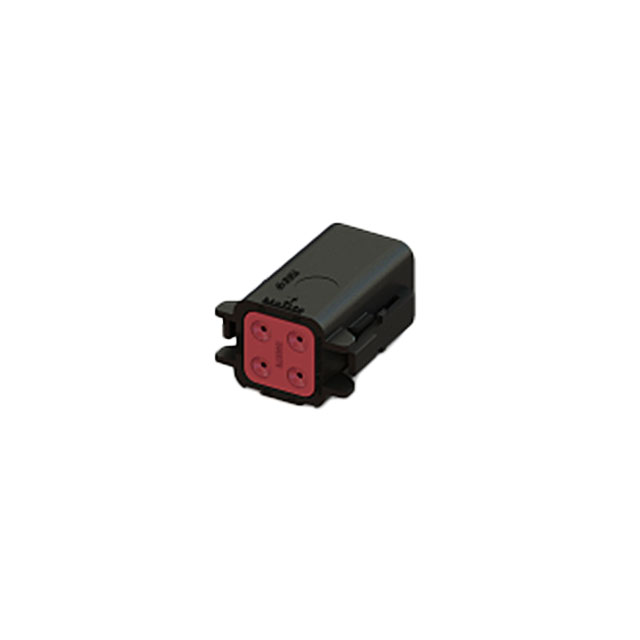

CONN RCPT HSG 4POS
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
NGC4F
ActiveTE Connectivity AMP Connectors
CONN RCPT HSG 4POS
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | NGC4F | NGC4 Series |
|---|---|---|
| Color | Black | Black |
| Connector Type | Receptacle | Plug, Receptacle |
| Contact Termination | Crimp | Crimp |
| Contact Type | Female Socket | Male Pin, Female Socket |
| Fastening Type | Latch Lock | Latch Holder, Latch Lock |
| Insulation Material | Polyamide (PA), Nylon | Polyamide (PA), Nylon |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Number of Positions | 4 | 4 |
| Number of Rows | 2 | 2 |
| Operating Temperature [Max] | 100 °C | 100 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
NGC4 Series
CONN PLUG HSG 4POS
| Part | Number of Rows | Connector Type | Fastening Type | Operating Temperature [Max] | Operating Temperature [Min] | Number of Positions | Insulation Material | Contact Termination | Mounting Type | Contact Type | Color |
|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors NGC4M | 2 | Plug | Latch Holder | 100 °C | -40 °C | 4 | Nylon, Polyamide (PA) | Crimp | Free Hanging (In-Line) | Male Pin | Black |
TE Connectivity AMP Connectors NGC4F | 2 | Receptacle | Latch Lock | 100 °C | -40 °C | 4 | Nylon, Polyamide (PA) | Crimp | Free Hanging (In-Line) | Female Socket | Black |
Description
General part information
NGC4 Series
4 Rectangular Connectors - Housings Receptacle Black
