020606060
ActiveRose Enclosures
BOX FIBERGLASS 2.17"L X 2.17"W
020606060
ActiveRose Enclosures
BOX FIBERGLASS 2.17"L X 2.17"W
Description
General part information
020606060

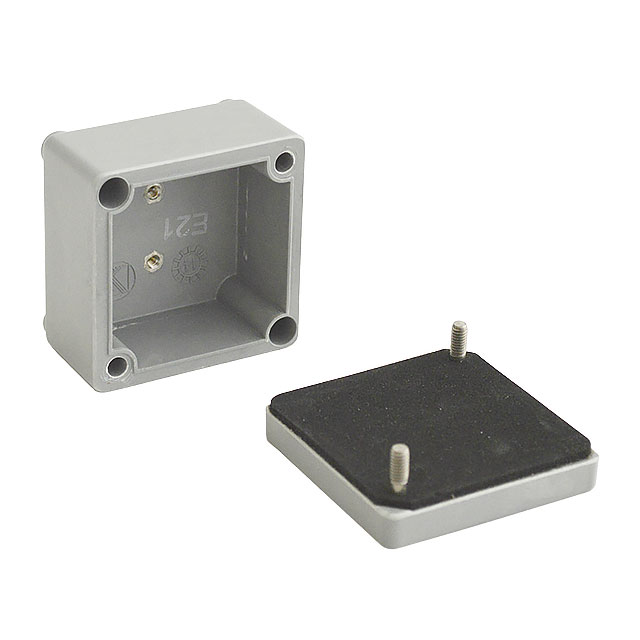

Box Fiberglass/Polyester Gray Cover Included 2.165" L x 2.165" W (55.00mm x 55.00mm) X 2.311" (58.70mm)
Technical Specifications
Parameters and characteristics for this part
| Specification | 020606060 |
|---|---|
| Area (L x W) | 4.69 in² |
| Color | Gray |
| Container Type | Box |
| Design | Cover Included |
| Features | Watertight |
| Height | 2.311 in |
| Material | Fiberglass, Polyester |
| Material Flammability Rating | UL94 V-0 |
| Ratings | UL-508, NEMA 1, 2, 4X, IP66, 4 |
| Size / Dimension Length | 2.165 in |
| Size / Dimension Width | 2.165 in |
| Thickness | 0.197 in |
| Weight | 0.28 lb |
