HH-3524
ActiveBUD INDUSTRIES
BOX ABS BLACK 4.63"L X 2.85"W
HH-3524
ActiveBUD INDUSTRIES
BOX ABS BLACK 4.63"L X 2.85"W
Description
General part information
HH-3524

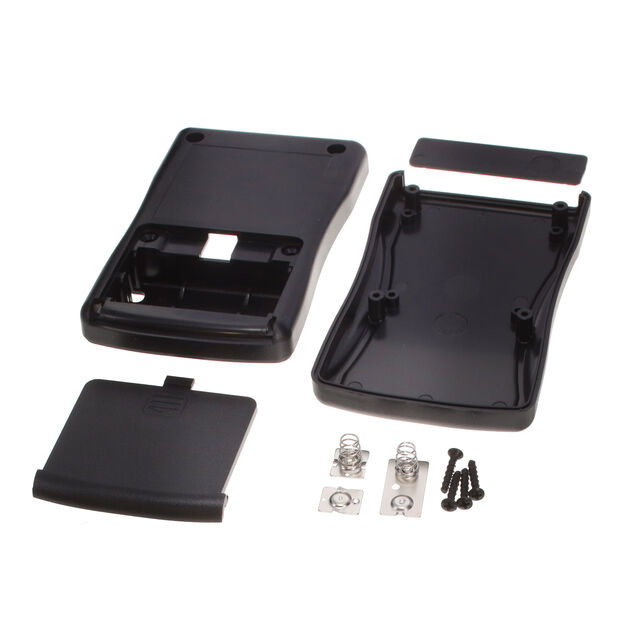

Box Plastic, ABS Black Hand Held, Split Sides 4.625" L x 2.850" W (117.48mm x 72.39mm) X 1.000" (25.40mm)
Technical Specifications
Parameters and characteristics for this part
| Specification | HH-3524 |
|---|---|
| Area (L x W) | 13.1 in² |
| Color | Black |
| Container Type | Box |
| Design | Split Sides, Hand Held |
| Features | Battery Compartment, AA |
| Height | 25.4 mm |
| Material | ABS, Plastic |
| Material Flammability Rating | UL94 V-0 |
| Size / Dimension Length | 4.625 in |
| Size / Dimension Width | 72.39 mm |
| Weight | 0.196 lb |
