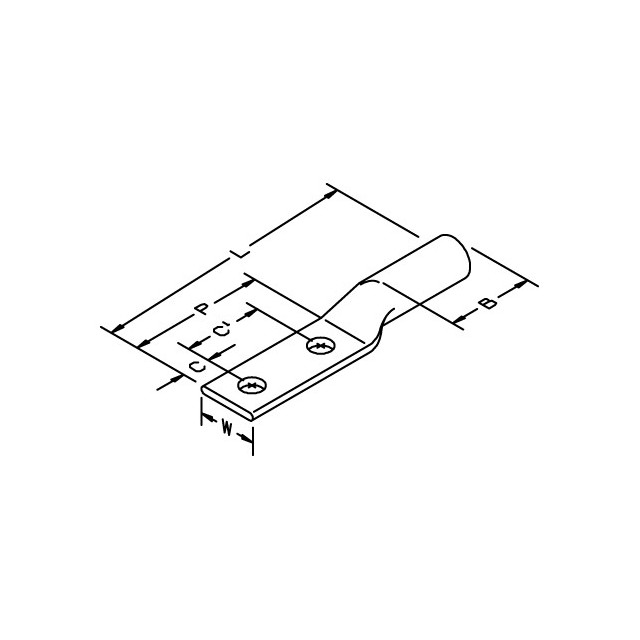

3M(TM) SCOTCHLOK(TM) COPPER TWO HOLE LONG BARREL LUG 31141, UP TO 35 KV, 3/0 AWG, ORANGE
31141
Active3M Electronic Specialty
3M(TM) SCOTCHLOK(TM) COPPER TWO HOLE LONG BARREL LUG 31141, UP TO 35 KV, 3/0 AWG, ORANGE
Description
General part information
31141
Terminal Connector Rectangular Lug, Grounding 3/0 AWG 1/2 Stud
Technical Specifications
Parameters and characteristics for this part
| Specification | 31141 |
|---|---|
| Color | Orange |
| Contact Finish | Electro-Tin |
| Contact Material | Copper |
| Diameter - Barrel OD | 0.622 in |
| Insulation | Non-Insulated |
| Length - Overall | 5.13 in |
| Mounting Type | Free Hanging (In-Line) |
| Stud/Tab Size | 0.5 Stud |
| Terminal Style | Two Stud Holes |
| Terminal Type | Lug, Grounding |
| Termination | Barrel, Crimb |
| Width - Outer Edges | 0.91 in |
| Wire Gauge | 3/0 AWG |
