1-85969-9

Active

TE Connectivity AMP Connectors

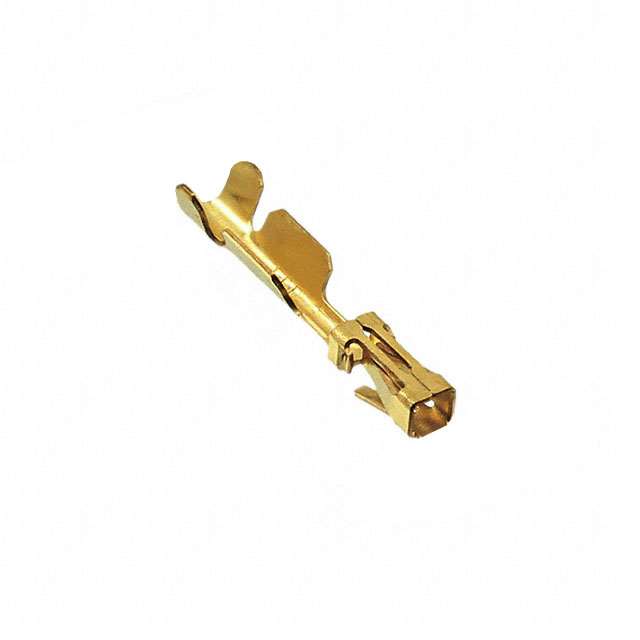

CONN SOCKET 20-24AWG CRIMP GOLD

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN SOCKET 20-24AWG CRIMP GOLD

Technical Specifications

Parameters and characteristics commom to parts in this series

CONN SOCKET 20-24AWG CRIMP TIN

Part	Contact Finish	Contact Finish Thickness	Contact Finish Thickness	Pin or Socket	Contact Termination	Wire Gauge [Min]	Wire Gauge [Max]
TE Connectivity AMP Connectors 85969-9	Tin	78 µin	1.98 µm	Socket	Crimp	20 AWG	24 AWG
TE Connectivity AMP Connectors 85969-8	Gold	30 Áin	0.76 Ám	Socket	Crimp	20 AWG	24 AWG
TE Connectivity AMP Connectors 85969-6	Gold	15 µin	0.38 µm	Socket	Crimp	20 AWG	24 AWG
TE Connectivity AMP Connectors 1-85969-9	Gold	15 µin	0.38 µm	Socket	Crimp	20 AWG	24 AWG
TE Connectivity AMP Connectors 85969-2	Gold	30 Áin	0.76 Ám	Socket	Crimp	20 AWG	24 AWG

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Socket Contact Gold 20-24 AWG Crimp
