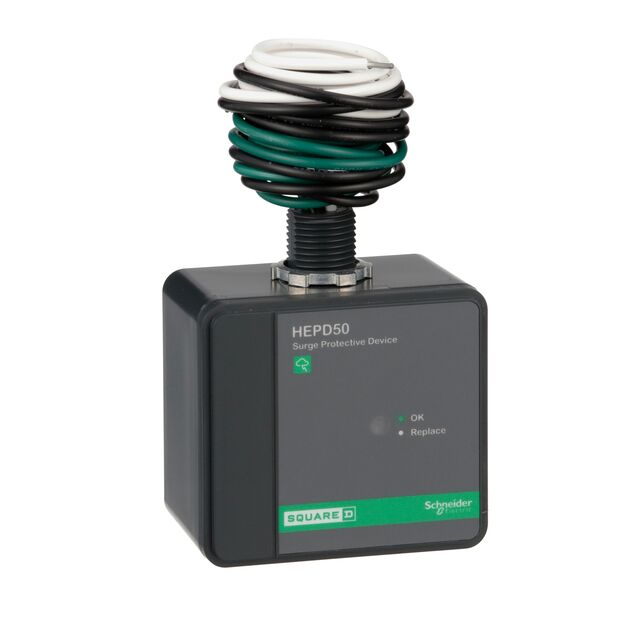

HEPD50
ActiveSCHNEIDER ELECTRIC
SPD TYPE 1 150V MCOV 1 POLE
HEPD50
ActiveSCHNEIDER ELECTRIC
SPD TYPE 1 150V MCOV 1 POLE
Description
General part information
HEPD50
SPD TYPE 1 150V MCOV 1 POLE
Technical Specifications
Parameters and characteristics for this part
| Specification | HEPD50 |
|---|---|
| Current - Discharge (Max) | 50 kA |
| Current - Discharge (Nom) | 10 kA |
| Current - Short Circuit Rating (SCCR) | 25 kA |
| Form | Module Only |
| Mounting Type | Panel Mount |
| Number of Poles | 1 |
| Type | Type 1 |
| Voltage - Continuous Operating (Max) (MCOV) | 150 VAC |
| Voltage - Protection Rating (VPR) | 1 kV |
