5962-3829407MXA

Active

Renesas Electronics Corporation

5.0V 8K X 8 ASYNCHRONOUS STATIC RAM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

5962-3829407MXA

Active

Renesas Electronics Corporation

5.0V 8K X 8 ASYNCHRONOUS STATIC RAM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	5962-3829407MXA

Memory Format	SRAM
Memory Interface	Parallel
Memory Organization	8 K
Memory Size	64 Kbit
Memory Type	Volatile
Mounting Type	Through Hole
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Package / Case	15.24 mm
Package / Case	0.6 in

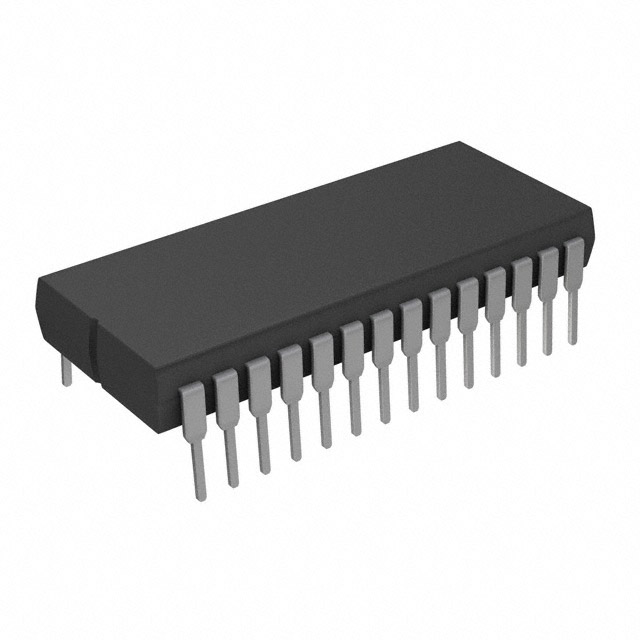

Package / Case	28-CDIP
Supplier Device Package	28-CDIP
Technology	SRAM - Asynchronous
Voltage - Supply [Max]	5.5 V
Voltage - Supply [Min]	4.5 V

5962-3829407 Series

5.0V 8K x 8 Asynchronous Static RAM

Part	Memory Organization	Technology	Supplier Device Package	Operating Temperature [Max]	Operating Temperature [Min]	Memory Type	Package / Case	Package / Case	Package / Case	Memory Format	Mounting Type	Voltage - Supply [Min]	Voltage - Supply [Max]	Memory Interface	Memory Size
Renesas Electronics Corporation 5962-3829407MXA	8 K	SRAM - Asynchronous	28-CDIP	125 °C	-55 °C	Volatile	15.24 mm	0.6 in	28-CDIP	SRAM	Through Hole	4.5 V	5.5 V	Parallel	64 Kbit

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 33.85
		13	$ 31.83
		26	$ 30.72
		52	$ 29.75
		104	$ 26.19
		260	$ 25.49

Description

General part information

5962-3829407 Series

The 5962-38294 (7164) SRAM is organized as 8K x 8 and offers a reduced power standby mode. The low-power version also offers a battery backup data retention capability at power supply levels as low as 2V. All inputs and outputs are TTL-compatible and operation is from a single 5V supply, simplifying system designs. Fully static asynchronous circuitry is used, requiring no clocks or refreshing for operation.
