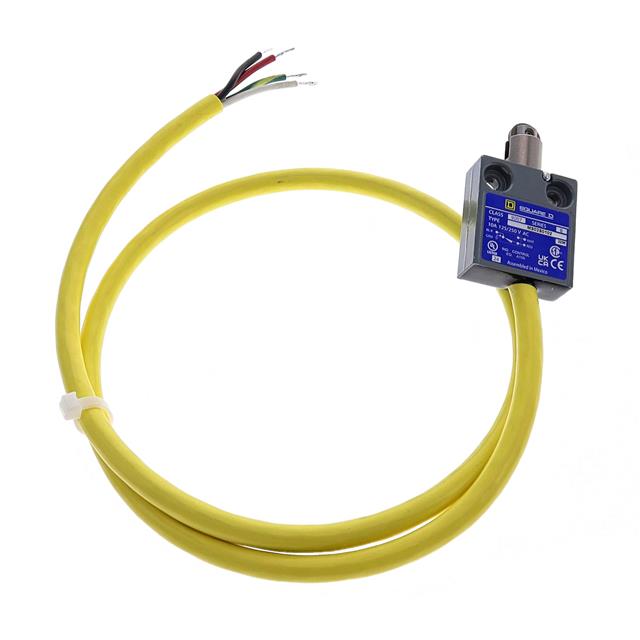

Specification	9007MS02S0102

Actuator Type	Roller Plunger
Circuit	SPDT
Current Rating	5 A, 6 A
Electrical Life (Cycles)	100000 Cycles
Ingress Protection Description	Waterproof, Dust Tight
Ingress Protection IP Rating	IP67
Mechanical Life (Cycles)	10000000 Cycles
Mounting Type	Chassis Mount
Operating Temperature (Max)	104 °C
Operating Temperature (Min)	-40 °C
Switch Function	On-Mom
Termination Style	Cable Leads
Voltage Rating - AC	120 V
Voltage Rating - DC	28 V
