5" PRE-CRIMP A3047 RED

Search across all available documentation for this part.

Unknown

Molex

5" PRE-CRIMP A3047 RED

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

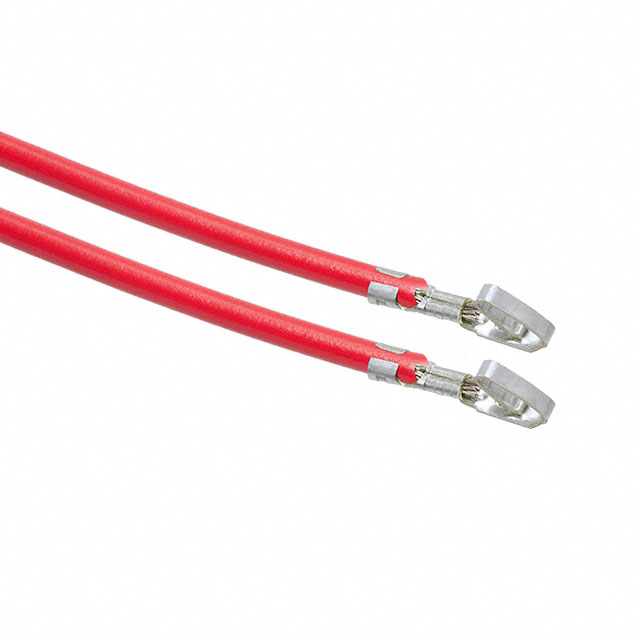

Red 30 AWG Jumper Lead Socket to Socket Tin 5.00" (127.00mm)

Technical documentation and resources

No documents available

Parameters and characteristics commom to parts in this series

Specification	0008500113-05-R1-D	0008500113 Series

Color	Red	White, Brown, Violet, Slate, Green, Yellow, Red, Black, Blue
Contact End	Socket to Socket	Socket to Cable (Round), Socket to Socket
Contact Finish	Tin	Tin
Contact Finish Thickness	2.54 µm	2.54 µm
Contact Finish Thickness	100 µin	100 µin
Length	-	76.2 - 304.8 mm
Length	-	6 - 8 in
Length [x]	5 in	3 - 12 in
Length [x]	127 mm	101.6 - 279.4 mm
Number of Conductors	1	1
Number of Rows	1	1
Wire Gauge	30 AWG	22 - 30 AWG

5" PRE-CRIMP A3048 ORANGE

...

Part	Number of Conductors	Contact End	Contact Finish	Length [x]	Length [x]	Contact Finish Thickness	Contact Finish Thickness	Wire Gauge	Number of Rows	Color	Length	Length
Molex 0008500113-05-A8	1	Socket to Cable (Round)	Tin	5 in	127 mm	2.54 µm	100 µin	28 AWG	1
Molex 0008500113-05-W4	1	Socket to Cable (Round)	Tin	5 in	127 mm	2.54 µm	100 µin	24 AWG	1	White
Molex 0008500113-03-N4	1	Socket to Cable (Round)	Tin	3 in		2.54 µm	100 µin	24 AWG	1	Brown	76.2 mm
Molex 0008500113-10-W6-D	1	Socket to Socket	Tin	10 in		2.54 µm	100 µin	26 AWG	1	White	254 mm
Molex 0008500113-08-V8-D	1	Socket to Socket	Tin			2.54 µm	100 µin	28 AWG	1	Violet	203.2 mm	8 in
Molex 0008500113-06-N1-D	1	Socket to Socket	Tin			2.54 µm	100 µin	30 AWG	1	Brown	152.4 mm	6 in
Molex 0008500113-12-S8	1	Socket to Cable (Round)	Tin	12 in		2.54 µm	100 µin	28 AWG	1	Slate	304.8 mm
Molex 0008500113-03-S4	1	Socket to Cable (Round)	Tin	3 in		2.54 µm	100 µin	24 AWG	1	Slate	76.2 mm
Molex 0008500113-08-G6	1	Socket to Cable (Round)	Tin			2.54 µm	100 µin	26 AWG	1	Green	203.2 mm	8 in
Molex 0008500113-08-Y4-D	1	Socket to Socket	Tin			2.54 µm	100 µin	24 AWG	1	Yellow	203.2 mm	8 in
