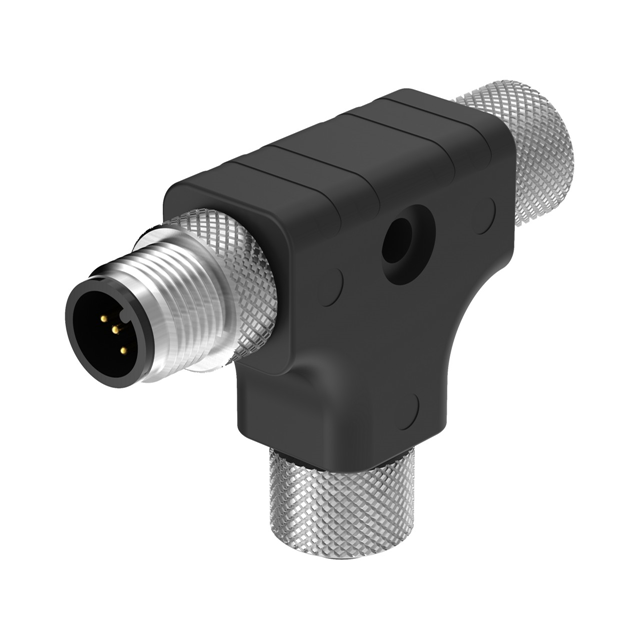

CSB-M1250M1250-T
ActiveBANNER ENGINEERING
SENSOR SPLITTER, T - STYLE, PANEL MOUNT, 5 POSITION M12 PLUG, 2 X 5 POSITION M12 RECEPTACLE
Deep-Dive with AI
Search across all available documentation for this part.
CSB-M1250M1250-T
ActiveBANNER ENGINEERING
SENSOR SPLITTER, T - STYLE, PANEL MOUNT, 5 POSITION M12 PLUG, 2 X 5 POSITION M12 RECEPTACLE
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | CSB-M1250M1250-T |
|---|---|
| Connector Style | Distributor T-Shaped |
| Convert From (Adapter End) | Male Pins |
| Convert To (Adapter End) | Female Sockets (2) |
| Current Rating (Amps) | 4 A |
| Features | Coupling Nut |
| Housing Color | Black |
| Housing Material | Polyurethane |
| Housing Material | PUR |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions (Convert From) | 5 |
| Number of Positions (Convert To) | 5 |
| Number of Positions (Convert To) | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Orientation (Convert From) | Keyed |
| Orientation (Convert To) | Keyed |
| Shell Size - Insert (Convert From) | M12 |
| Shell Size - Insert (Convert To) [custom] | M12 |
| Shielding | Unshielded |
| Voltage Rating | 300 VDC, 250 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
CSB-M1250M1250-T
Circular Connector Distributor T-Shaped 5/5 (2) Male Pins/Female Sockets (2) Free Hanging (In-Line)
