1376390-1

Active

TE Connectivity AMP Connectors

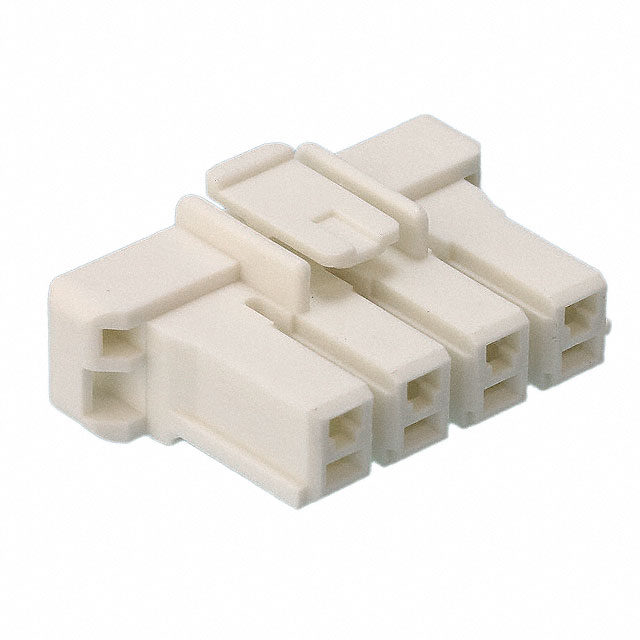

CONN PLUG HSG 4POS 5.00MM

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN PLUG HSG 4POS 5.00MM

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1376390-1	1376390 Series

Color	Natural	Natural, Yellow
Connector Type	Plug	Plug
Contact Termination	Crimp	Crimp
Contact Type	Female Socket	Female Socket
Fastening Type	Latch Lock	Latch Lock
Insulation Material	Polyamide (PA66), Nylon 6/6, Glass Filled	Polyamide (PA66), Nylon 6/6, Glass Filled, Polyamide (PA66), Nylon 6/6
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Note	Contacts Not Included	Contacts Not Included
Number of Positions	4	4
Number of Rows	1	1
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-30 ░C	-30 ░C
Pitch [x]	5 mm	5 mm
Pitch [x]	0.197 in	0.197 in

CONN PLUG HSG 4POS 5.00MM

Part	Number of Rows	Connector Type	Insulation Material	Contact Termination	Mounting Type	Contact Type	Note	Operating Temperature [Min]	Operating Temperature [Max]	Pitch [x]	Pitch [x]	Number of Positions	Color	Fastening Type
TE Connectivity AMP Connectors 1376390-1	1	Plug	Polyamide (PA66), Nylon 6/6, Glass Filled	Crimp	Free Hanging (In-Line)	Female Socket	Contacts Not Included	-30 ░C	105 ░C	5 mm	0.197 in	4	Natural	Latch Lock
TE Connectivity AMP Connectors 3-1376390-4	1	Plug	Polyamide (PA66), Nylon 6/6	Crimp	Free Hanging (In-Line)	Female Socket	Contacts Not Included	-30 ░C	105 ░C	5 mm	0.197 in	4	Yellow	Latch Lock

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

4 Rectangular Connectors - Housings Plug Natural 0.197" (5.00mm)
