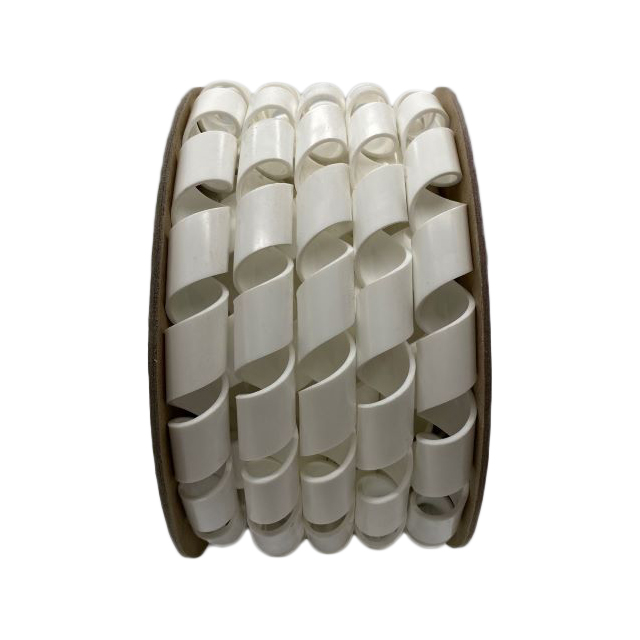

HT 3/4 C WH

Active

MM Newman Corporation

SPIRAL WRAP 0.62" X 100' WHITE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

HT 3/4 C WH

Active

MM Newman Corporation

SPIRAL WRAP 0.62" X 100' WHITE

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1	$ 172.51
		10	$ 140.11

Description

General part information

HT 3/4 Series

Spiral Wrap 0.750" (19.05mm) X 100' (30.48m) White

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	HT 3/4 C WH	HT 3/4 Series

Abrasion Protection	Abrasion Resistant	Abrasion Resistant
Color	White	Natural, Black, Green, White
Diameter - Inside, Expanded [diameter]	5 in	4 - 5 in
Diameter - Inside, Expanded [diameter]	127 mm	101.6 - 127 mm
Diameter - Inside, Non-Expanded [diameter]	15.75 mm	15.75 - 17.42 mm
Diameter - Inside, Non-Expanded [diameter]	0.62 in	0.62 - 0.686 "
Diameter - Outside, Non-Expanded [diameter]	19.05 mm	19.05 mm
Diameter - Outside, Non-Expanded [diameter]	0.75 in	0.75 in
Environment Protection	-	UV Resistant
Features	Solvent Resistant, Chemical Resistant	Solvent Resistant, Chemical Resistant, Self Extinguishing
Heat Protection	-	Fire Resistant
Length	100 ft	100 ft
Length	30.48 m	30.48 m
Material	Polyethylene (PE)	Polytetrafluoroethylene (PTFE), Nylon, Polyethylene (PE)
Material Flammability Rating	-	UL94 V-0, UL VW-1, UL94 V-2, UL1441
Operating Temperature [Max]	88 °C	80 - 260 ░C
Operating Temperature [Min]	-60 °C	-268 - -20 °C
Type	Spiral Wrap	Spiral Wrap
Type Attributes	Harness	Harness
Wall Thickness	1.65 mm	0.81 - 1.65 mm
Wall Thickness	0.065 in	0.032 - 0.065 in

HT 3/4 Series

SPIRAL WRAP 0.686" X 100' NAT

Part	Length	Length	Diameter - Inside, Expanded [diameter]	Diameter - Inside, Expanded [diameter]	Operating Temperature [Max]	Operating Temperature [Min]	Material	Environment Protection	Features	Heat Protection	Material Flammability Rating	Wall Thickness	Wall Thickness	Type Attributes	Color	Diameter - Outside, Non-Expanded [diameter]	Diameter - Outside, Non-Expanded [diameter]	Type	Abrasion Protection	Diameter - Inside, Non-Expanded [diameter]	Diameter - Inside, Non-Expanded [diameter]
MM Newman Corporation HT 3/4 T	100 ft	30.48 m	4 in	101.6 mm	260 ░C	-268 °C	Polytetrafluoroethylene (PTFE)	UV Resistant	Chemical Resistant, Solvent Resistant	Fire Resistant	UL VW-1, UL94 V-0	0.032 in	0.81 mm	Harness	Natural	19.05 mm	0.75 in	Spiral Wrap	Abrasion Resistant	0.686 "	17.42 mm
MM Newman Corporation HT 3/4 N	100 ft	30.48 m	5 in	127 mm	121 °C	-40 °C	Nylon		Chemical Resistant, Self Extinguishing, Solvent Resistant			0.032 in	0.81 mm	Harness	Natural	19.05 mm	0.75 in	Spiral Wrap	Abrasion Resistant	0.686 "	17.42 mm
MM Newman Corporation HT 3/4 R-B	100 ft	30.48 m	5 in	127 mm	80 C	-20 C	Polyethylene (PE)		Chemical Resistant, Solvent Resistant	Fire Resistant	UL94 V-2, UL1441	0.065 in	1.65 mm	Harness	Black	19.05 mm	0.75 in	Spiral Wrap	Abrasion Resistant	0.62 in	15.75 mm
MM Newman Corporation HT 3/4 UR	100 ft	30.48 m	5 in	127 mm	88 °C	-60 °C	Polyethylene (PE)		Chemical Resistant, Solvent Resistant			0.065 in	1.65 mm	Harness	Black	19.05 mm	0.75 in	Spiral Wrap	Abrasion Resistant	0.62 in	15.75 mm
MM Newman Corporation HT 3/4 C GR	100 ft	30.48 m	5 in	127 mm	88 °C	-60 °C	Polyethylene (PE)		Chemical Resistant, Solvent Resistant			0.065 in	1.65 mm	Harness	Green	19.05 mm	0.75 in	Spiral Wrap	Abrasion Resistant	0.62 in	15.75 mm
MM Newman Corporation HT 3/4 C OR DG	100 ft	30.48 m	5 in	127 mm	88 °C	-60 °C	Polyethylene (PE)		Chemical Resistant, Solvent Resistant			0.065 in	1.65 mm	Harness		19.05 mm	0.75 in	Spiral Wrap	Abrasion Resistant	0.62 in	15.75 mm
MM Newman Corporation HT 3/4 C WH	100 ft	30.48 m	5 in	127 mm	88 °C	-60 °C	Polyethylene (PE)		Chemical Resistant, Solvent Resistant			0.065 in	1.65 mm	Harness	White	19.05 mm	0.75 in	Spiral Wrap	Abrasion Resistant	0.62 in	15.75 mm
