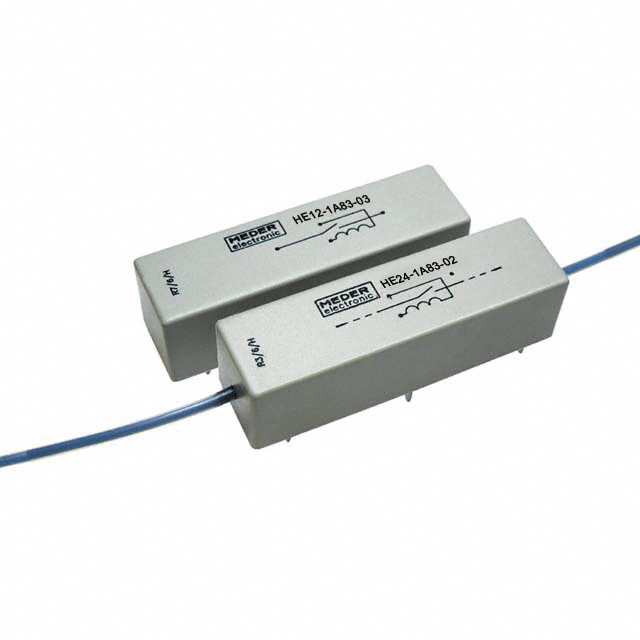

HE12-1A83-02
ActiveStandex-Meder Electronics
RELAY REED SPST 3A 12V
HE12-1A83-02
ActiveStandex-Meder Electronics
RELAY REED SPST 3A 12V
Description
General part information
HE12-1A83-02
RELAY REED SPST 3A 12V
Technical Specifications
Parameters and characteristics for this part
| Specification | HE12-1A83-02 |
|---|---|
| Coil Current | 46.2 mA |
| Coil Resistance | 250 Ohms |
| Coil Type | Non Latching |
| Coil Voltage | 12 VAC |
| Contact Form | SPST-NO |
| Contact Rating (Current) | 3 A |
| Form A Count | 1 |
| Mounting Type | Through Hole |
| Must Operate Voltage | 9 VDC |
| Must Release Voltage | 2 VDC |
| Operate Time | 3 ms |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -20 °C |
| Release Time | 1.5 ms |
| Switching Voltage AC (Max) | 7500 VAC |
| Switching Voltage DC (Max) | 7500 VDC |
| Termination Style | PC Pin |
