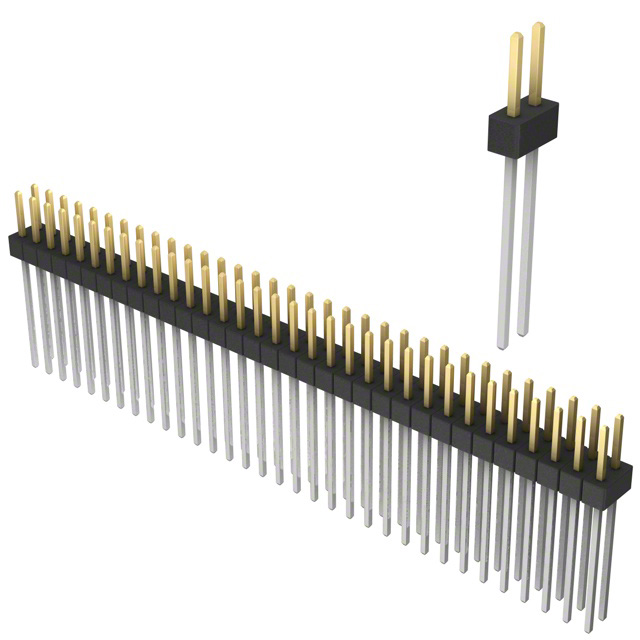

PBC33DAFN

Active

Sullins Connector Solutions

CONN HEADER VERT 66POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

PBC33DAFN

Active

Sullins Connector Solutions

CONN HEADER VERT 66POS 2.54MM

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PBC33DAFN

Connector Type	Breakaway, Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	10 çin
Contact Finish Thickness - Mating	0.25 çm
Contact Finish Thickness - Post	2.54 µm
Contact Finish Thickness - Post	100 µin
Contact Length - Mating	5.84 mm
Contact Length - Mating [x]	0.23 in
Contact Length - Post	0.62 in
Contact Length - Post	15.75 mm
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.1 in
Insulation Height	2.54 mm
Insulation Material	Polybutylene Terephthalate (PBT)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	66
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-65 ░C
Overall Contact Length	24.13 mm
Overall Contact Length	0.95 in
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Shrouding	Unshrouded
Style	Board to Board, Cable
Termination	Solder

PBC33 Series

Part	Contact Length - Post	Contact Length - Post	Pitch - Mating	Pitch - Mating	Style	Connector Type	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Number of Positions Loaded	Material Flammability Rating	Number of Rows	Contact Finish - Mating	Contact Shape	Contact Finish - Post	Insulation Material	Mounting Type	Termination	Fastening Type	Contact Length - Mating [x]	Contact Length - Mating	Contact Type	Contact Material	Operating Temperature [Max]	Operating Temperature [Min]	Current Rating (Amps)	Shrouding	Insulation Height	Insulation Height	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Overall Contact Length	Overall Contact Length	Number of Positions	Insulation Color	Contact Length - Post [x]	Contact Length - Post [x]	Contact Length - Mating [x]	Overall Contact Length
Sullins Connector Solutions PBC33DAFN	0.62 in	15.75 mm	0.1 in	2.54 mm	Board to Board Cable	Breakaway Header	2.54 µm	100 µin	All	UL94 V-0	2	Gold	Square	Tin	Polybutylene Terephthalate (PBT)	Through Hole	Solder	Push-Pull	0.23 in	5.84 mm	Male Pin	Phosphor Bronze	125 °C	-65 ░C	3 A	Unshrouded	0.1 in	2.54 mm	2.54 mm	0.1 in	10 çin	0.25 çm	24.13 mm	0.95 in	66	Black
Sullins Connector Solutions PBC33SADN			0.1 in	2.54 mm	Board to Board Cable	Breakaway Header	2.54 µm	100 µin	All	UL94 V-0	1	Gold	Square	Tin	Polybutylene Terephthalate (PBT)	Through Hole	Solder	Push-Pull	0.23 in	5.84 mm	Male Pin	Phosphor Bronze	125 °C	-65 ░C	3 A	Unshrouded	0.1 in	2.54 mm			10 çin	0.25 çm	19.05 mm	0.75 in	33	Black	10.67 mm	0.42 in
Sullins Connector Solutions PBC33DFDN			0.1 in	2.54 mm	Board to Board Cable	Breakaway Header	2.54 µm	100 µin	All	UL94 V-0	2	Gold	Square	Tin	Polybutylene Terephthalate (PBT)	Through Hole	Solder	Push-Pull	0.318 "		Male Pin	Phosphor Bronze	125 °C	-65 ░C	3 A	Unshrouded	0.1 in	2.54 mm	2.54 mm	0.1 in	10 çin	0.25 çm	21.29 mm	0.838 in	66	Black	10.67 mm	0.42 in	8.08 mm
Sullins Connector Solutions PBC33DABN	0.23 in	5.84 mm	0.1 in	2.54 mm	Board to Board Cable	Breakaway Header	2.54 µm	100 µin	All	UL94 V-0	2	Gold	Square	Tin	Polybutylene Terephthalate (PBT)	Through Hole	Solder	Push-Pull	0.23 in	5.84 mm	Male Pin	Phosphor Bronze	125 °C	-65 ░C	3 A	Unshrouded	0.1 in	2.54 mm	2.54 mm	0.1 in	10 çin	0.25 çm	14.22 mm	0.56 in	66	Black
Sullins Connector Solutions PBC33DFEN	0.52 "	13.21 mm	0.1 in	2.54 mm	Board to Board Cable	Breakaway Header	2.54 µm	100 µin	All	UL94 V-0	2	Gold	Square	Tin	Polybutylene Terephthalate (PBT)	Through Hole	Solder	Push-Pull	0.318 "		Male Pin	Phosphor Bronze	125 °C	-65 ░C	3 A	Unshrouded	0.1 in	2.54 mm	2.54 mm	0.1 in	10 çin	0.25 çm	23.83 mm	0.938 in	66	Black			8.08 mm
Sullins Connector Solutions PBC33SFDN			0.1 in	2.54 mm	Board to Board Cable	Breakaway Header	2.54 µm	100 µin	All	UL94 V-0	1	Gold	Square	Tin	Polybutylene Terephthalate (PBT)	Through Hole	Solder	Push-Pull	0.318 "		Male Pin	Phosphor Bronze	125 °C	-65 ░C	3 A	Unshrouded	0.1 in	2.54 mm			10 çin	0.25 çm	21.29 mm	0.838 in	33	Black	10.67 mm	0.42 in	8.08 mm
Sullins Connector Solutions PBC33DAAN			0.1 in	2.54 mm	Board to Board Cable	Breakaway Header	2.54 µm	100 µin	All	UL94 V-0	2	Gold	Square	Tin	Polybutylene Terephthalate (PBT)	Through Hole	Solder	Push-Pull	0.23 in	5.84 mm	Male Pin	Phosphor Bronze	125 °C	-65 ░C	3 A	Unshrouded	0.1 in	2.54 mm	2.54 mm	0.1 in	10 çin	0.25 çm	11.43 mm	0.45 "	66	Black	3.05 mm	0.12 in
Sullins Connector Solutions PBC33DACN			0.1 in	2.54 mm	Board to Board Cable	Breakaway Header	2.54 µm	100 µin	All	UL94 V-0	2	Gold	Square	Tin	Polybutylene Terephthalate (PBT)	Through Hole	Solder	Push-Pull	0.23 in	5.84 mm	Male Pin	Phosphor Bronze	125 °C	-65 ░C	3 A	Unshrouded	0.1 in	2.54 mm	2.54 mm	0.1 in	10 çin	0.25 çm	0.65 in		66	Black	8.13 mm	0.32 in		16.51 mm
Sullins Connector Solutions PBC33SBAN	0.1 in	2.54 mm	0.1 in	2.54 mm	Board to Board Cable	Breakaway Header	2.54 µm	100 µin	All	UL94 V-0	1	Gold	Square	Tin	Polybutylene Terephthalate (PBT)	Through Hole Right Angle	Solder	Push-Pull	0.23 in	5.84 mm	Male Pin	Phosphor Bronze	125 °C	-65 ░C	3 A	Unshrouded	0.14 in	3.56 mm			10 çin	0.25 çm			33	Black
Sullins Connector Solutions PBC33DAEN	0.52 "	13.21 mm	0.1 in	2.54 mm	Board to Board Cable	Breakaway Header	2.54 µm	100 µin	All	UL94 V-0	2	Gold	Square	Tin	Polybutylene Terephthalate (PBT)	Through Hole	Solder	Push-Pull	0.23 in	5.84 mm	Male Pin	Phosphor Bronze	125 °C	-65 ░C	3 A	Unshrouded	0.1 in	2.54 mm	2.54 mm	0.1 in	10 çin	0.25 çm	21.59 mm	0.85 in	66	Black
