34DWMSP15B4M6RT
ActiveGrayhill Inc.

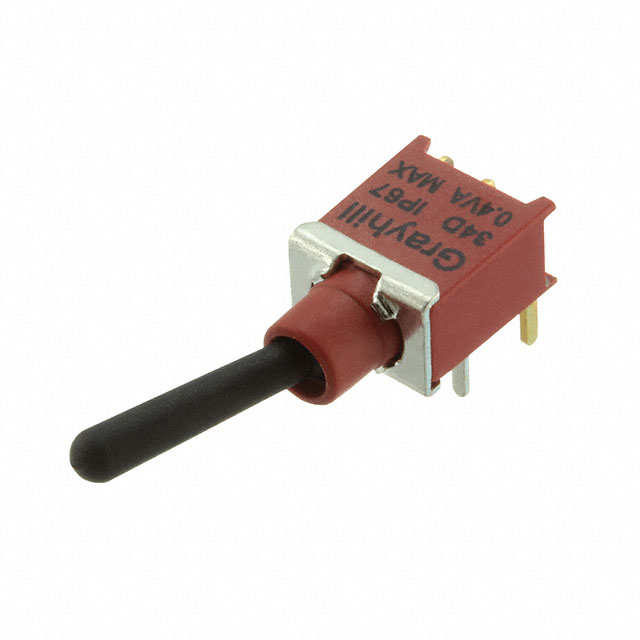

SWITCH TOGGLE SPDT 0.4VA 20V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
34DWMSP15B4M6RT
ActiveGrayhill Inc.
SWITCH TOGGLE SPDT 0.4VA 20V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 34DWMSP15B4M6RT | 34DWMSP Series |
|---|---|---|
| Actuator Length | - | 6.7 mm |
| Actuator Length [x] | 10.7 mm | 6.1 - 10.7 mm |
| Actuator Material | Brass, Chrome Plated | Brass, Chrome Plated |
| Actuator Type | Standard Round | Standard Round |
| Bushing Thread | Unthreaded | Unthreaded |
| Circuit | SPDT | SPDT |
| Current Rating (Amps) | 0.4 VA | 0.4 - 3 VA |
| Electrical Life | 30000 Cycles | 30000 Cycles |
| Features | Epoxy Sealed Terminals | Epoxy Sealed Terminals |
| Illumination | Non-Illuminated | Non-Illuminated |
| Ingress Protection | IP67 - Dust Tight, Waterproof | IP67 - Dust Tight, Waterproof |
| Mounting Type | Through Hole, Right Angle | Through Hole, Vertical, Right Angle, Through Hole, Right Angle |
| Operating Temperature [Max] | 85 °C | 85 °C |
| Operating Temperature [Min] | -30 ░C | -30 ░C |
| Switch Function | On-On | Mom-Off-Mom, On-On, On-Off-On, On-Off-Mom, On-Mom |
| Termination Style | PC Pin | PC Pin, Solder Lug |
| Voltage Rating - AC | 20 V | 20 - 125 V |
| Voltage Rating - DC | 20 V | 20 - 28 V |
34DWMSP Series
TOGGLE SWITCH, (ON)-OFF-(ON), SPDT, NON ILLUMINATED, 34D SERIES, 3 A
| Part | Switch Function | Electrical Life | Voltage Rating - AC | Current Rating (Amps) | Operating Temperature [Min] | Operating Temperature [Max] | Actuator Length [x] | Voltage Rating - DC | Features | Actuator Type | Bushing Thread | Actuator Material | Termination Style | Ingress Protection | Circuit | Illumination | Mounting Type | Actuator Length [z] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Grayhill Inc. 34DWMSP42B4M7RT | Mom-Off-Mom | 30000 Cycles | 20 V | 0.4 VA | -30 ░C | 85 °C | 6.1 mm | 20 V | Epoxy Sealed Terminals | Standard Round | Unthreaded | Brass, Chrome Plated | PC Pin | IP67 - Dust Tight, Waterproof | SPDT | Non-Illuminated | Right Angle, Through Hole, Vertical | |
Grayhill Inc. 34DWMSP16B4M6RT | On-On | 30000 Cycles | 20 V | 0.4 VA | -30 ░C | 85 °C | 20 V | Epoxy Sealed Terminals | Standard Round | Unthreaded | Brass, Chrome Plated | PC Pin | IP67 - Dust Tight, Waterproof | SPDT | Non-Illuminated | Through Hole, Right Angle | 6.7 mm | |
Grayhill Inc. 34DWMSP15B4M6RT | On-On | 30000 Cycles | 20 V | 0.4 VA | -30 ░C | 85 °C | 10.7 mm | 20 V | Epoxy Sealed Terminals | Standard Round | Unthreaded | Brass, Chrome Plated | PC Pin | IP67 - Dust Tight, Waterproof | SPDT | Non-Illuminated | Through Hole, Right Angle | |
Grayhill Inc. 34DWMSP12B4M6RT | On-On | 30000 Cycles | 20 V | 0.4 VA | -30 ░C | 85 °C | 6.1 mm | 20 V | Epoxy Sealed Terminals | Standard Round | Unthreaded | Brass, Chrome Plated | PC Pin | IP67 - Dust Tight, Waterproof | SPDT | Non-Illuminated | Through Hole, Right Angle | |
Grayhill Inc. 34DWMSP33B4M2RT | On-Off-On | 30000 Cycles | 20 V | 0.4 VA | -30 ░C | 85 °C | 8.7 mm | 20 V | Epoxy Sealed Terminals | Standard Round | Unthreaded | Brass, Chrome Plated | PC Pin | IP67 - Dust Tight, Waterproof | SPDT | Non-Illuminated | Through Hole | |
Grayhill Inc. 34DWMSP41B4M1RT | Mom-Off-Mom | 30000 Cycles | 20 V | 0.4 VA | -30 ░C | 85 °C | 10.69 mm | 20 V | Epoxy Sealed Terminals | Standard Round | Unthreaded | Brass, Chrome Plated | Solder Lug | IP67 - Dust Tight, Waterproof | SPDT | Non-Illuminated | ||
Grayhill Inc. 34DWMSP15B4M7RT | On-On | 30000 Cycles | 20 V | 0.4 VA | -30 ░C | 85 °C | 10.7 mm | 20 V | Epoxy Sealed Terminals | Standard Round | Unthreaded | Brass, Chrome Plated | PC Pin | IP67 - Dust Tight, Waterproof | SPDT | Non-Illuminated | Right Angle, Through Hole, Vertical | |
Grayhill Inc. 34DWMSP15B4M2RT | On-On | 30000 Cycles | 20 V | 0.4 VA | -30 ░C | 85 °C | 10.7 mm | 20 V | Epoxy Sealed Terminals | Standard Round | Unthreaded | Brass, Chrome Plated | PC Pin | IP67 - Dust Tight, Waterproof | SPDT | Non-Illuminated | Through Hole | |
Grayhill Inc. 34DWMSP52B4M6RT | On-Off-Mom | 30000 Cycles | 20 V | 0.4 VA | -30 ░C | 85 °C | 6.1 mm | 20 V | Epoxy Sealed Terminals | Standard Round | Unthreaded | Brass, Chrome Plated | PC Pin | IP67 - Dust Tight, Waterproof | SPDT | Non-Illuminated | Through Hole, Right Angle | |
Grayhill Inc. 34DWMSP31B4M1RT | On-Off-On | 30000 Cycles | 20 V | 0.4 VA | -30 ░C | 85 °C | 10.69 mm | 20 V | Epoxy Sealed Terminals | Standard Round | Unthreaded | Brass, Chrome Plated | Solder Lug | IP67 - Dust Tight, Waterproof | SPDT | Non-Illuminated |
