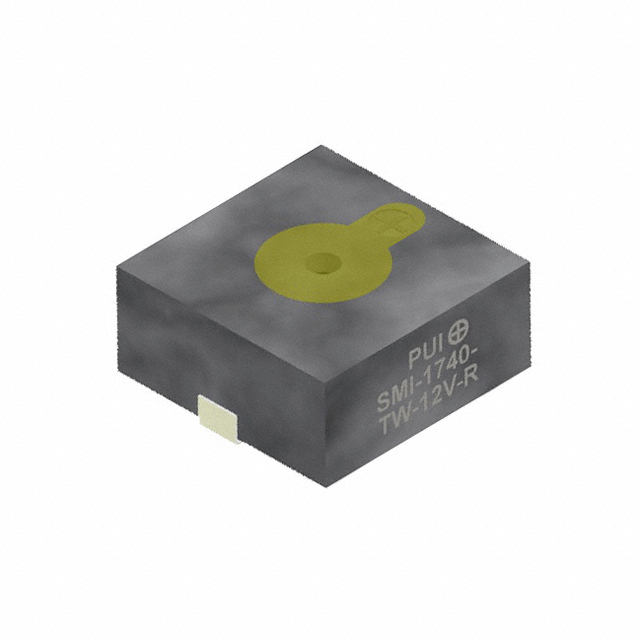

SMI-1740-TW-12V-R
ObsoletePUI Audio, Inc.
BUZZER MAGN 12V17X17MM" SMD
SMI-1740-TW-12V-R
ObsoletePUI Audio, Inc.
BUZZER MAGN 12V17X17MM" SMD
Description
General part information
SMI-1740-TW-12V-R
Buzzers Indicator, Internally Driven Electromechanical/Magnetic 12 V 15mA 4kHz 83dB @ 12V, 10cm Surface Mount Solder Pads
Technical Specifications
Parameters and characteristics for this part
| Specification | SMI-1740-TW-12V-R |
|---|---|
| Current - Supply | 15 mA |
| Driver Circuitry | Indicator, Internally Driven |
| Frequency | 4 kHz |
| Height - Seated (Max) | 0.327 in |
| Input Type | DC |
| Mounting Type | Surface Mount |
| Operating Mode | Single Tone |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Port Location | Top |
| Size / Dimension Length | 0.669 in |
| Size / Dimension Width | 0.669 in |
| Sound Pressure Level (SPL) | 83 dB |
| Technology | Electromechanical, Magnetic |
| Termination | Solder Pads |
| Voltage - Rated | 12 VAC |
| Voltage Range (Max) | 20 V |
| Voltage Range (Min) | 3 V |
