387-020-558-212

Active

EDAC Inc.

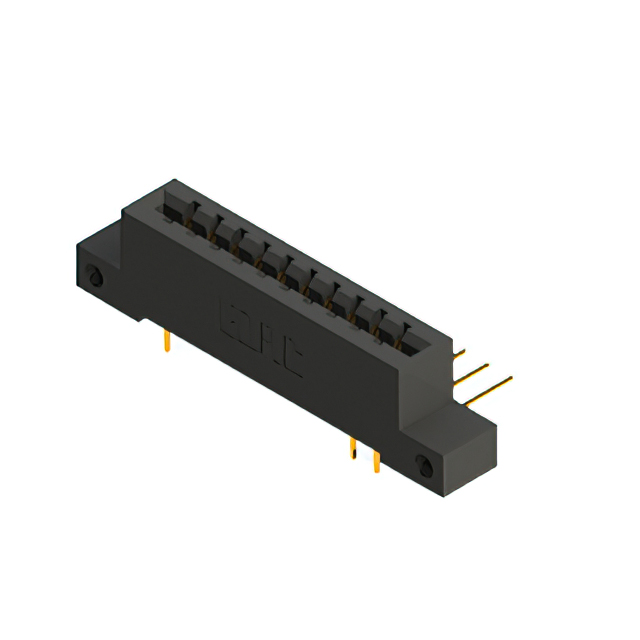

CARD EDGE CONNECTOR, 20 CONTACT(S), 2 ROW(S), FEMALE, RIGHT ANGLE, 0.156 INCH PITCH, SOLDER TERMINAL, HOLE 0.128, BLACK INSULATOR,

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

387-020-558-212

Active

EDAC Inc.

CARD EDGE CONNECTOR, 20 CONTACT(S), 2 ROW(S), FEMALE, RIGHT ANGLE, 0.156 INCH PITCH, SOLDER TERMINAL, HOLE 0.128, BLACK INSULATOR,

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	387-020-558-212

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Dual Edge
Color	Black
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Copper Alloy
Contact Type	Cantilever
Flange Feature	Unthreaded, Flush Mount, Side Opening
Flange Feature [diameter]	3.25 mm
Flange Feature [diameter]	0.128 "
Gender	Female
Material - Insulation	Polyester Thermoplastic
Mounting Type	Through Hole, Right Angle
Number of Positions	20
Number of Positions/Bay/Row [custom]	10
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.156 in
Pitch [x]	3.96 mm
Read Out	Dual
Termination	Wire Wrap
Termination Rows	2

387-020 Series

...

Part	Mounting Type	Flange Feature [diameter]	Flange Feature	Flange Feature [diameter]	Contact Type	Contact Material	Card Type	Number of Positions/Bay/Row [custom]	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Number of Positions	Operating Temperature [Min]	Operating Temperature [Max]	Termination Rows	Material - Insulation	Contact Finish Thickness	Contact Finish Thickness	Contact Finish	Color	Number of Rows	Pitch [x]	Pitch [x]	Gender	Read Out	Termination	Features	Number of Positions/Bay/Row [custom]	Number of Positions/Bay/Row [custom]	Number of Positions/Bay/Row [custom]	Flange Feature	Flange Feature
EDAC Inc. 387-020-542-204	Through Hole	3.96 mm	Flush Mount Top Opening Unthreaded	0.156 in	Cantilever	Copper Alloy	Non Specified - Dual Edge	10	1.37 mm	0.054 "	1.78 mm	0.07 in	20	-40 °C	105 ░C	2	Polyester Thermoplastic	10 Áin	0.25 Ám	Gold	Black	2	0.156 in	3.96 mm	Female	Dual	Wire Wrap
EDAC Inc. 387-020-555-201	Board Edge Straddle Mount				Cantilever	Copper Alloy	Non Specified - Dual Edge	10	1.37 mm	0.054 "	1.78 mm	0.07 in	20	-40 °C	105 ░C	2	Polyester Thermoplastic	10 Áin	0.25 Ám	Gold	Black	2	0.156 in	3.96 mm	Female	Dual	Solder Eyelet(s)	Card Extender
EDAC Inc. 387-020-523-212	Through Hole	3.25 mm	Flush Mount Side Opening Unthreaded	0.128 "	Cantilever	Copper Alloy	Non Specified - Dual Edge	10	1.37 mm	0.054 "	1.78 mm	0.07 in	20	-40 °C	105 ░C	2	Polyester Thermoplastic	10 Áin	0.25 Ám	Gold	Black	2	0.156 in	3.96 mm	Female	Dual	Solder
EDAC Inc. 387-020-541-108	Through Hole		4-40 Flush Mount Threaded Insert Top Opening		Cantilever	Copper Alloy	Non Specified - Single Edge		1.37 mm	0.054 "	1.78 mm	0.07 in	20	-40 °C	105 ░C	1	Polyester Thermoplastic	10 Áin	0.25 Ám	Gold	Black	1	0.156 in	3.96 mm	Female	Single	Wire Wrap		20	20	20
EDAC Inc. 387-020-542-602	Through Hole				Cantilever	Copper Alloy	Non Specified - Single Edge		1.37 mm	0.054 "	1.78 mm	0.07 in	20	-40 °C	105 ░C	1	Polyester Thermoplastic	10 Áin	0.25 Ám	Gold	Black	1	0.156 in	3.96 mm	Female	Single	Wire Wrap		20	20	20	3.25 mm	0.128 in
EDAC Inc. 387-020-555-212	Board Edge Straddle Mount	3.25 mm	Flush Mount Side Opening Unthreaded	0.128 "	Cantilever	Copper Alloy	Non Specified - Dual Edge	10	1.37 mm	0.054 "	1.78 mm	0.07 in	20	-40 °C	105 ░C	2	Polyester Thermoplastic	10 Áin	0.25 Ám	Gold	Black	2	0.156 in	3.96 mm	Female	Dual	Solder Eyelet(s)	Card Extender
EDAC Inc. 387-020-559-201	Through Hole Right Angle				Cantilever	Copper Alloy	Non Specified - Dual Edge	10	1.37 mm	0.054 "	1.78 mm	0.07 in	20	-40 °C	105 ░C	2	Polyester Thermoplastic	10 Áin	0.25 Ám	Gold	Black	2	0.156 in	3.96 mm	Female	Dual	Wire Wrap
EDAC Inc. 387-020-541-604	Through Hole	3.96 mm	Top Mount Opening Unthreaded	0.156 in	Cantilever	Copper Alloy	Non Specified - Single Edge		1.37 mm	0.054 "	1.78 mm	0.07 in	20	-40 °C	105 ░C	1	Polyester Thermoplastic	10 Áin	0.25 Ám	Gold	Black	1	0.156 in	3.96 mm	Female	Single	Wire Wrap		20	20	20
EDAC Inc. 387-020-558-212	Through Hole Right Angle	3.25 mm	Flush Mount Side Opening Unthreaded	0.128 "	Cantilever	Copper Alloy	Non Specified - Dual Edge	10	1.37 mm	0.054 "	1.78 mm	0.07 in	20	-40 °C	105 ░C	2	Polyester Thermoplastic	10 Áin	0.25 Ám	Gold	Black	2	0.156 in	3.96 mm	Female	Dual	Wire Wrap
EDAC Inc. 387-020-523-107	Through Hole		Flush Mount M3 Threaded Insert Top Opening		Cantilever	Copper Alloy	Non Specified - Single Edge		1.37 mm	0.054 "	1.78 mm	0.07 in	20	-40 °C	105 ░C	1	Polyester Thermoplastic	10 Áin	0.25 Ám	Gold	Black	1	0.156 in	3.96 mm	Female	Single	Solder		20	20	20

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	25	$ 13.69

Description

General part information

387-020 Series

20 Position Female Connector Non Specified - Dual Edge Gold 0.156" (3.96mm) Black

Documents

Technical documentation and resources
