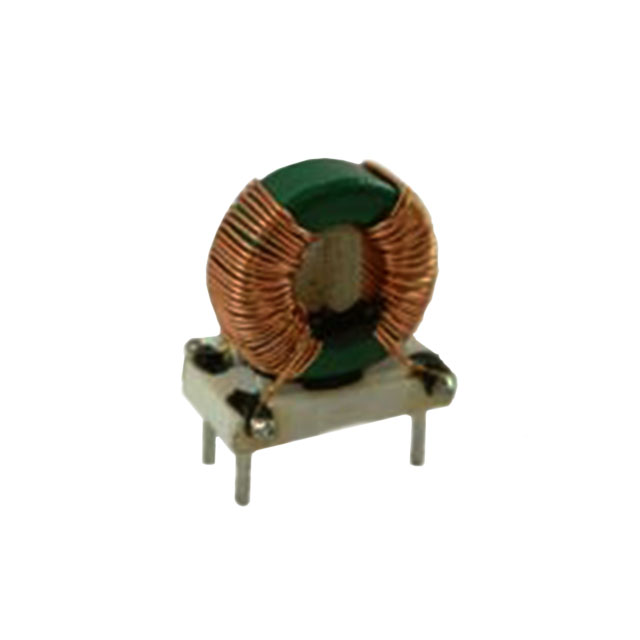

CMT-8101-B
4 mH @ 1 kHz 2 Line Common Mode Choke Through Hole 1.7A DCR 173mOhm
Technical Specifications
Parameters and characteristics for this part
| Specification | CMT-8101-B |
|---|---|
| Approval Agency | IEC, VDE, CSA, UL |
| Current Rating (Max) | 1.7 A |
| DC Resistance (DCR) (Max) | 173 mOhm |
| Filter Type | Power Line |
| Height (Max) | 0.9 in |
| Inductance | 4 mH |
| Mounting Type | Through Hole |
| Number of Lines | 2 |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | 4 PC Pin, Vertical |
| Package Leads | 4 Leads |
| Package Name | Vertical |
| Size / Dimension Length | 0.76 in |
| Size / Dimension Width | 0.615 in |
| Voltage Rating - AC | 1500 Vpk |
