Description
General part information

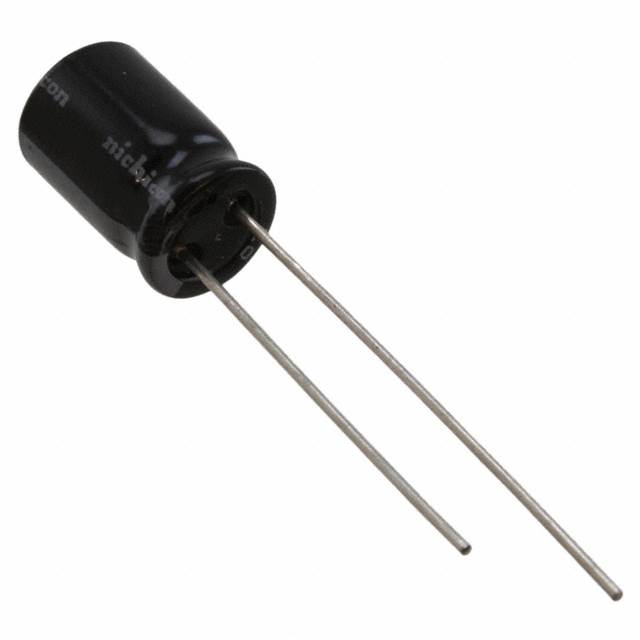

UKL1V680MPDANATA
68 µF 35 V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 105°C
Technical Specifications
Parameters and characteristics for this part
| Specification | UKL1V680MPDANATA |
|---|---|
| Applications | General Purpose |
| Capacitance | 68 µF |
| Height - Seated (Max) | 0.492 in |
| Lead Spacing | 0.138 in |
| Lifetime | 1000 Hrs |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Can, Radial |
| Polarization | Polar |
| Ripple Current | 230 mA, 460 mA |
| Size / Dimension Diameter | 0.315 in |
| Tolerance | 20 % |
| Voltage - Rated | 35 V |
