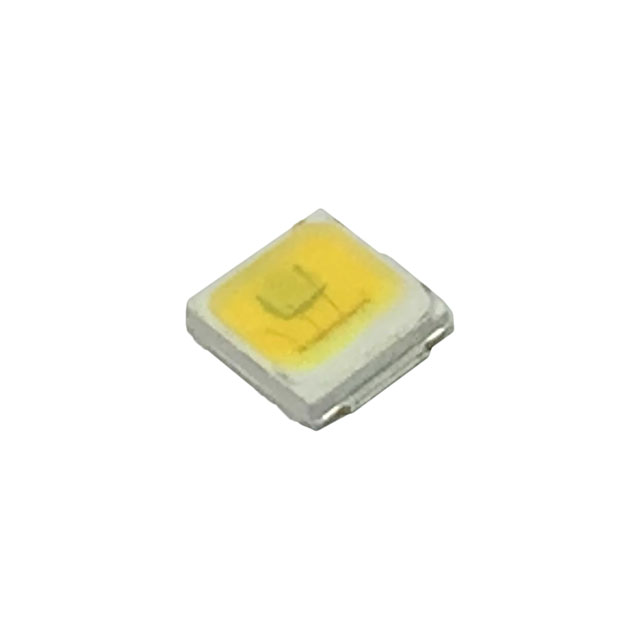

AB-EZD05N-B3-K40

Active

American Bright Optoelectronics Corporation

LED AB-EZD NEUT WHT 4000K 3030

Search across all available documentation for this part.

Active

American Bright Optoelectronics Corporation

LED AB-EZD NEUT WHT 4000K 3030

Technical Specifications

Parameters and characteristics for this part

Specification	AB-EZD05N-B3-K40

CCT (K)	4000 K
Color	Neutral, White
CRI (Color Rendering Index)	70
Flux @ 25°C, Current - Test	55 lm
Flux @ 85°C, Current - Test	45 lm
Height - Seated (Max) [Max] [z]	0.52 mm
Height - Seated (Max) [Max] [z]	0.02 "
Mounting Type	Surface Mount
Package / Case	1212
Package / Case	3030 Metric
Size / Dimension [x]	0.118 in
Size / Dimension [x]	3 mm
Size / Dimension [y]	3 mm
Size / Dimension [y]	0.118 in
Supplier Device Package	3030
Thermal Resistance of Package [diameter]	15 °C/W
Viewing Angle	120 °
Voltage - Forward (Vf) (Typ)	24 V

LED AB-EZD NEUT WHT 4000K 3030

Part	Voltage - Forward (Vf) (Typ)	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Package / Case	Package / Case	Flux @ 85°C, Current - Test	Viewing Angle	Mounting Type	CRI (Color Rendering Index)	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Thermal Resistance of Package [diameter]	Supplier Device Package	Color	CCT (K)	Flux @ 25°C, Current - Test
American Bright Optoelectronics Corporation AB-EZD05N-B3-K40	24 V	0.118 in	3 mm	3 mm	0.118 in	1212	3030 Metric	45 lm	120 °	Surface Mount	70	0.52 mm	0.02 "	15 °C/W	3030	Neutral, White	4000 K	55 lm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

LED Lighting AB-EZD White, Neutral 4000K (3725K ~ 4275K) 24V 120° 1212 (3030 Metric)
