PPA00002RD-01F
ActivePasternack
HEAVY DUTY CPU / PDU POWER CORD
PPA00002RD-01F
ActivePasternack
HEAVY DUTY CPU / PDU POWER CORD
Description
General part information
PPA00002RD-01F

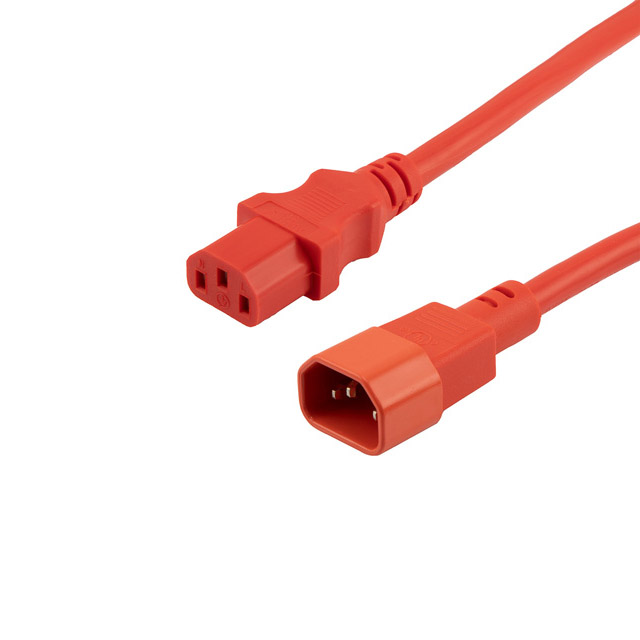

1.00' (304.8mm) Power Cord Red IEC 320-C14 To IEC 320-C13 SJT
Technical Specifications
Parameters and characteristics for this part
| Specification | PPA00002RD-01F |
|---|---|
| 1st Connector | IEC 320-C14 |
| 2nd Connector | IEC 320-C13 |
| Color | Red |
| Cord Type | SJT |
| Current Rating | 15 A |
| Length | 12 in |
| Number of Conductors | 3 |
| Operating Temperature | 60 °C |
| Shielding | Unshielded |
| Style | Female Sockets (Slots), Male Pins (Blades) |
| Voltage Rating | 300 VAC/DC |
| Wire Gauge | 14 AWG |
