1586000-2
ActiveTE Connectivity AMP Connectors
CONNECTOR HOUSING, VAL-U-LOK SERIES, PLUG, 2 POSITIONS, 4.2 MM, VAL-U-LOK SERIES CONNECTOR SYSTEM
1586000-2
ActiveTE Connectivity AMP Connectors
CONNECTOR HOUSING, VAL-U-LOK SERIES, PLUG, 2 POSITIONS, 4.2 MM, VAL-U-LOK SERIES CONNECTOR SYSTEM
Description
General part information
1586000-2

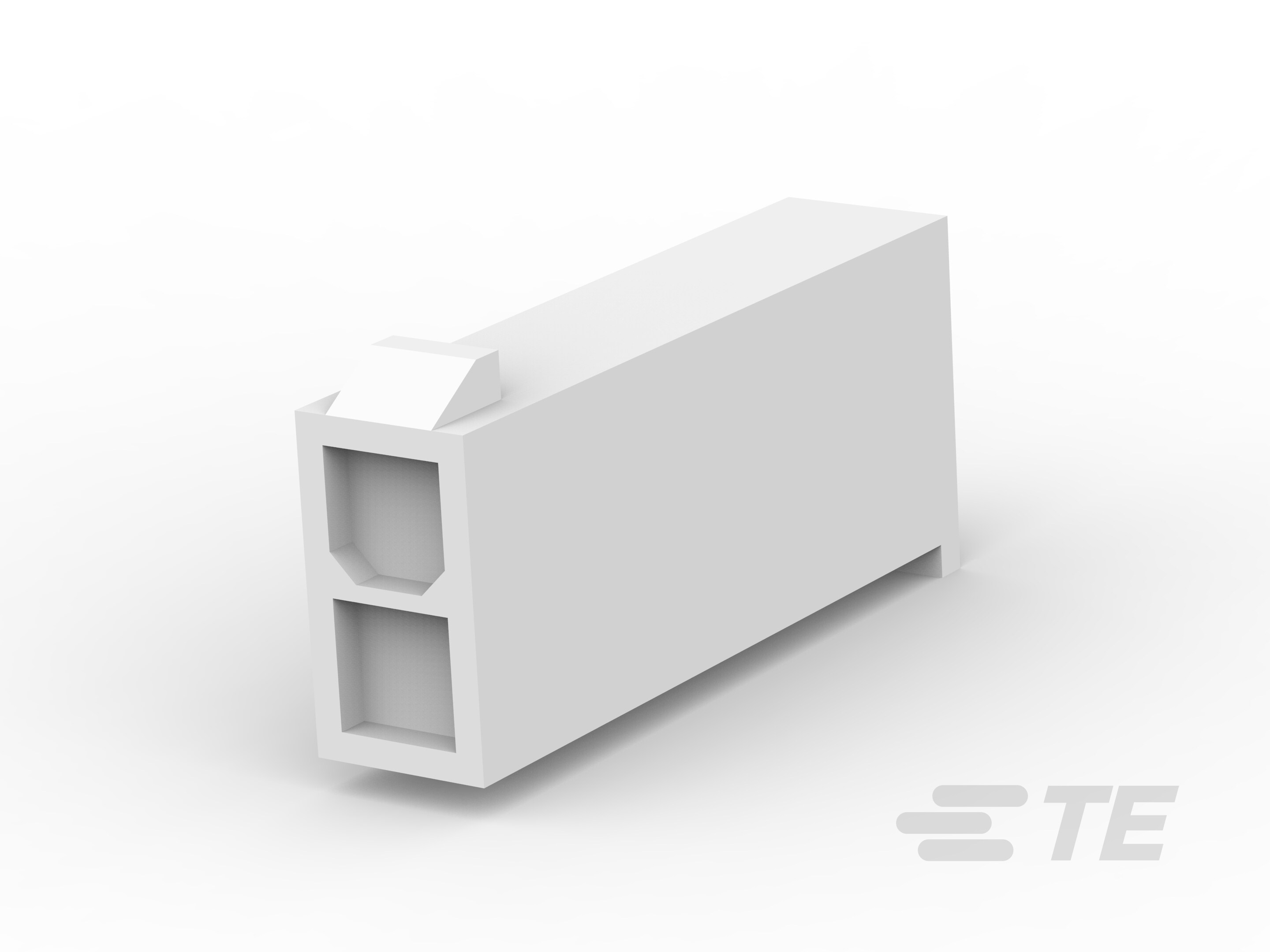

The 1586000-2 is a 2-way 2-row natural color free-hanging Plug Housing made of nylon. It is ideal for VAL-U-LOK connector system. The plug housing accepts pin contacts.
Technical Specifications
Parameters and characteristics for this part
| Specification | 1586000-2 |
|---|---|
| Color | Natural |
| Connector Type | Plug |
| Contact Termination | Crimp |
| Contact Type | Male Pin |
| Fastening Type | Locking Ramp |
| Insulation Material | Nylon, Polyamide (PA) |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 2 |
| Number of Rows | 2 |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -40 °C |
| Row Spacing | 0.165 in |
