2315856-3
ActiveTE Connectivity AMP Connectors

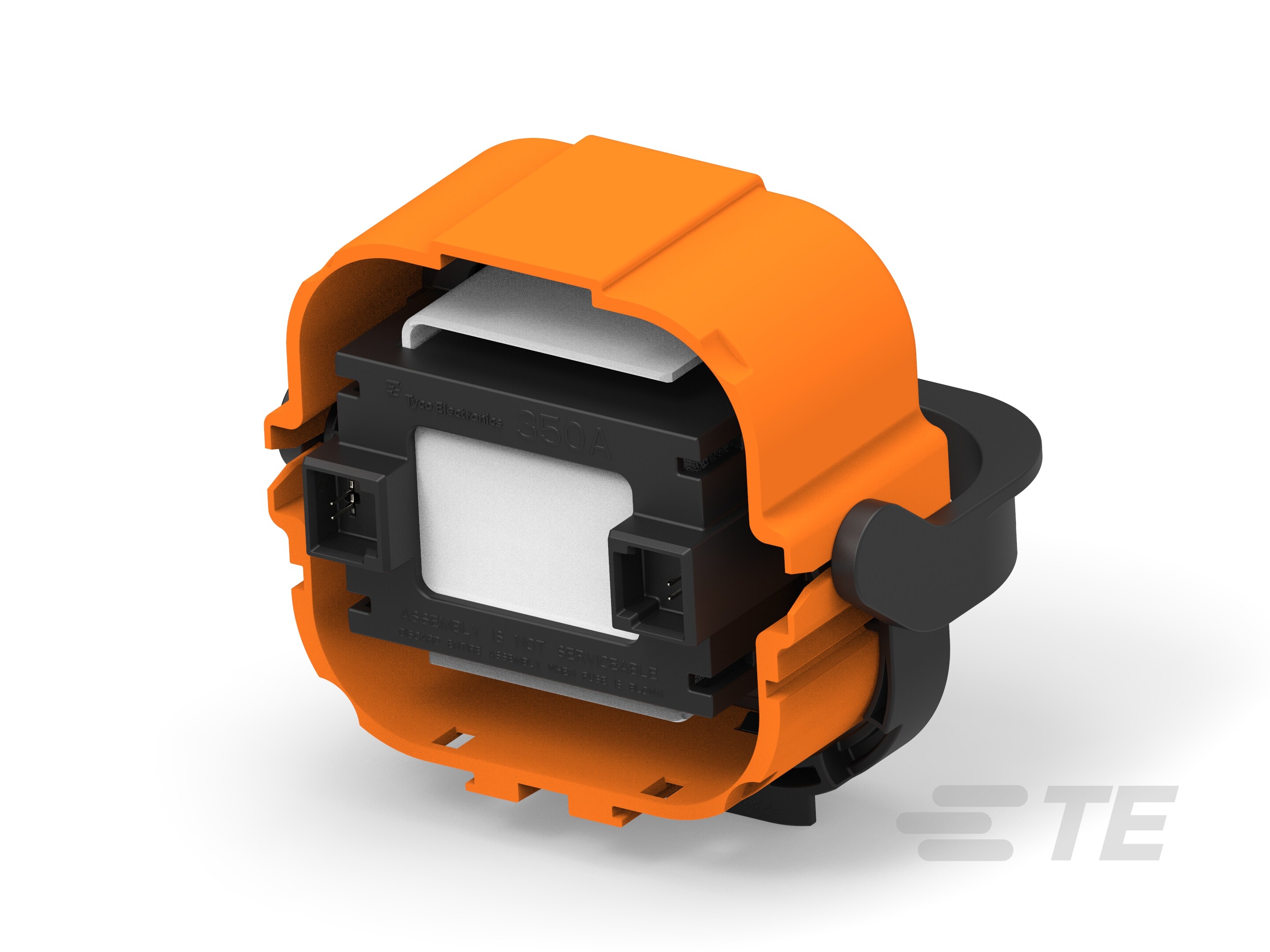

HEADERS & WIRE HOUSINGS MSD,PLUG HSG ASSY,350A,V0
2315856-3
ActiveTE Connectivity AMP Connectors
HEADERS & WIRE HOUSINGS MSD,PLUG HSG ASSY,350A,V0
Description
General part information
2315856-3
Fuse Holder, High Current Fuse, 2 Position, Secondary Locking, UL 94V-0, IP2XB, -40 – 65 °C [-40 – 149 °F], Module Components
Technical Specifications
Parameters and characteristics for this part
| Specification | 2315856-3 |
|---|---|
| Color | Orange |
| Connector Type | Plug |
| Contact Termination | Crimp |
| Contact Type | Male Pin |
| Fastening Type | Lever Lock |
| Insulation Material | Nylon, Polyamide (PA) |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 2 |
| Number of Rows | 1 |
| Operating Temperature (Max) | 65 °C |
| Operating Temperature (Min) | -40 °C |
