Description
General part information
IPX-A30-10A2

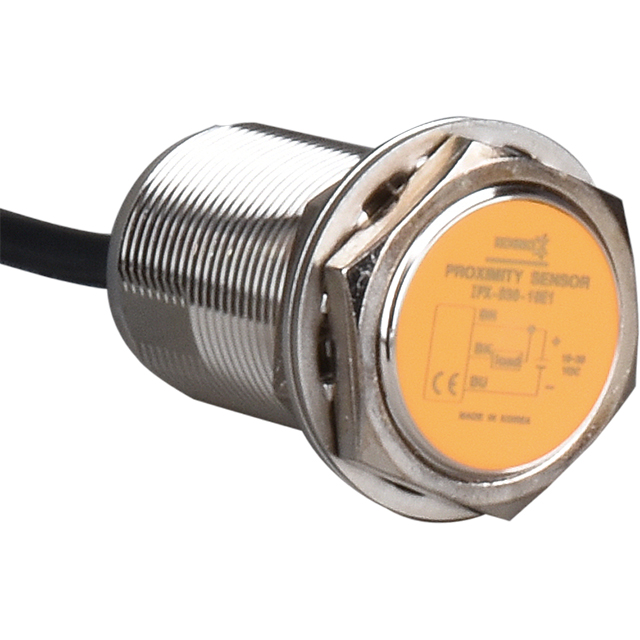

Inductive Proximity Sensor 0.394" (10mm) IP67 Cylinder, Threaded - M30
Technical Specifications
Parameters and characteristics for this part
| Specification | IPX-A30-10A2 |
|---|---|
| Indicator | LED |
| Ingress Protection | IP67 |
| Material - Body | Nickel-Plated Brass |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -25 °C |
| Output Type | NC, 2-Wire |
| Package / Case | Cylinder, Threaded - M30 |
| Response Frequency | 20 Hz |
| Sensing Distance | 0.394 " |
| Sensor Type | Inductive |
| Shielding | Shielded |
| Termination Style | Cable Leads |
| Voltage - Supply (Maximum) | 250 VAC |
| Voltage - Supply (Minimum) | 90 VAC |
