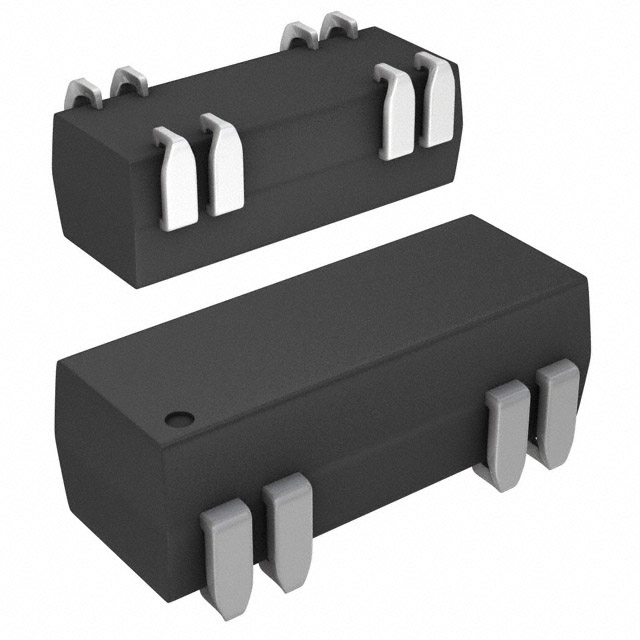

8L61-12-001

Active

Coto Technology

RELAY COTO STANDARD CD REV BOM/MFG NPR/NPR /TUBE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

8L61-12-001

Active

Coto Technology

RELAY COTO STANDARD CD REV BOM/MFG NPR/NPR /TUBE

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	8L61-12-001	8L61 Series

Coil Current	24 mA	24 mA
Coil Resistance	500 Ohms	200 - 500 Ohms
Coil Type	Non Latching	Non Latching
Coil Voltage	12 VDC	5 - 12 VDC
Contact Form	SPDT (1 Form C)	SPDT (1 Form C)
Contact Rating (Current)	250 mA	250 mA
Features	-	Diode, Electrostatic Shield
Mounting Type	Surface Mount	Surface Mount
Must Operate Voltage	9.6 VDC	3.8 - 9.6 VDC
Must Release Voltage	1 VDC	0.5 - 1 VDC
Operate Time	1 ms	1 ms
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-20 C	-20 C
Release Time	1 ms	1 ms
Switching Voltage	100 VAC, 100 VDC	100 VAC
Termination Style	J Lead	J Lead

8L61 Series

RELAY REED SPDT 250MA 12V

Part	Coil Type	Switching Voltage	Contact Form	Contact Rating (Current)	Termination Style	Coil Voltage	Operate Time	Coil Resistance	Must Release Voltage	Operating Temperature [Max]	Operating Temperature [Min]	Features	Coil Current	Must Operate Voltage	Mounting Type	Release Time
Coto Technology 8L61-12-011	Non Latching	100 VAC, 100 VDC	SPDT (1 Form C)	250 mA	J Lead	12 VDC	1 ms	500 Ohms	1 VDC	85 °C	-20 C	Diode	24 mA	9.6 VDC	Surface Mount	1 ms
Coto Technology 8L61-05-011	Non Latching	100 VAC, 100 VDC	SPDT (1 Form C)	250 mA	J Lead	5 VDC	1 ms	200 Ohms	0.5 VDC	85 °C	-20 C	Diode		3.8 VDC	Surface Mount	1 ms
Coto Technology 8L61-05-101	Non Latching	100 VAC, 100 VDC	SPDT (1 Form C)	250 mA	J Lead	5 VDC	1 ms	200 Ohms	0.5 VDC	85 °C	-20 C	Electrostatic Shield		3.8 VDC	Surface Mount	1 ms
Coto Technology 8L61-12-111	Non Latching	100 VAC, 100 VDC	SPDT (1 Form C)	250 mA	J Lead	12 VDC	1 ms	500 Ohms	1 VDC	85 °C	-20 C	Diode, Electrostatic Shield	24 mA	9.6 VDC	Surface Mount	1 ms
Coto Technology 8L61-05-111	Non Latching	100 VAC, 100 VDC	SPDT (1 Form C)	250 mA	J Lead	5 VDC	1 ms	200 Ohms	0.5 VDC	85 °C	-20 C	Diode, Electrostatic Shield		3.8 VDC	Surface Mount	1 ms
Coto Technology 8L61-12-001	Non Latching	100 VAC, 100 VDC	SPDT (1 Form C)	250 mA	J Lead	12 VDC	1 ms	500 Ohms	1 VDC	85 °C	-20 C		24 mA	9.6 VDC	Surface Mount	1 ms
Coto Technology 8L61-05-001	Non Latching	100 VAC, 100 VDC	SPDT (1 Form C)	250 mA	J Lead	5 VDC	1 ms	200 Ohms	0.5 VDC	85 °C	-20 C			3.8 VDC	Surface Mount	1 ms
Coto Technology 8L61-12-101	Non Latching	100 VAC, 100 VDC	SPDT (1 Form C)	250 mA	J Lead	12 VDC	1 ms	500 Ohms	1 VDC	85 °C	-20 C	Electrostatic Shield	24 mA	9.6 VDC	Surface Mount	1 ms

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	500	$ 7.32
Newark	Each	250	$ 7.54

Description

General part information

8L61 Series

RELAY COTO STANDARD CD REV BOM/MFG NPR/NPR /TUBE

Documents

Technical documentation and resources
