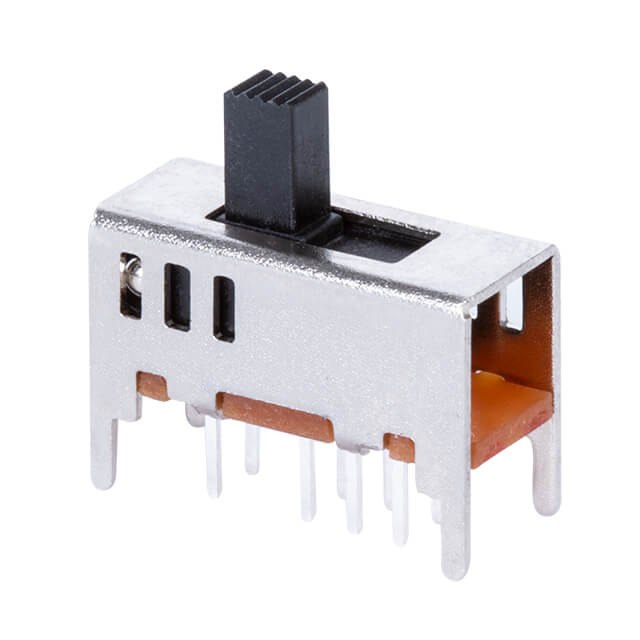

SLW-161167-5A-S-D
ActiveSame Sky (Formerly CUI Devices)
SWITCH: SLIDE; POS: 3; DP3T; 0.2A/30VDC; MBB (SHORTING),ON-ON-ON
SLW-161167-5A-S-D
ActiveSame Sky (Formerly CUI Devices)
SWITCH: SLIDE; POS: 3; DP3T; 0.2A/30VDC; MBB (SHORTING),ON-ON-ON
Description
General part information
SLW-161167-5A-S-D
Slide Switch DP3T Through Hole
Technical Specifications
Parameters and characteristics for this part
| Specification | SLW-161167-5A-S-D |
|---|---|
| Actuator Length | 5 mm |
| Actuator Material | Nylon 6/6, Polyamide (PA66) |
| Actuator Type | Standard |
| Circuit | DP3T |
| Contact Finish | Silver |
| Contact Material | Phosphor Bronze |
| Contact Timing | Shorting (MBB) |
| Current Rating | 200 mA |
| Electrical Life (Cycles) | 10000 Cycles |
| Mechanical Life (Cycles) | 10000 Cycles |
| Mounting Type | Through Hole |
| Operating Force | 0.25 kgf |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -20 °C |
| Switch Function | On-On-On |
| Switch Travel | 2 mm |
| Termination Style | PC Pin |
| Voltage Rating - DC | 30 V |
