3832510MBL

Active

BULGIN LIMITED

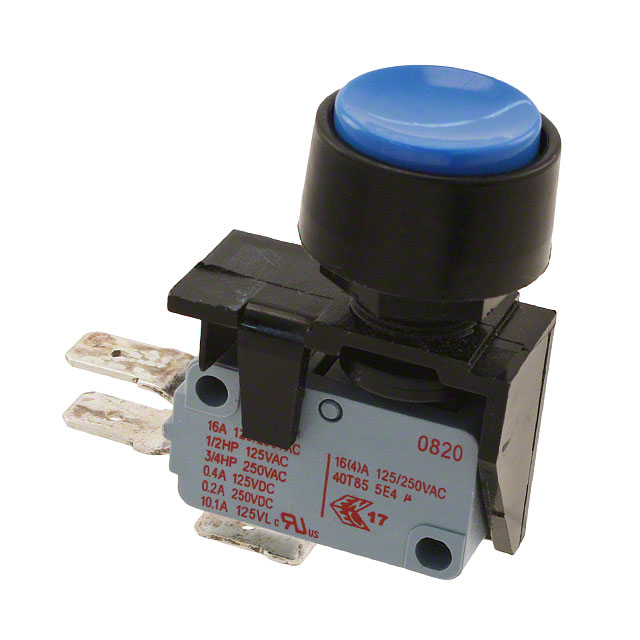

SWITCH PUSHBUTTON SPDT 16A 250V

Search across all available documentation for this part.

Active

BULGIN LIMITED

SWITCH PUSHBUTTON SPDT 16A 250V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 9.70

General part information

Pushbutton Switch SPDT Standard Panel Mount, Rear

Technical documentation and resources

Specification	3832510MBL	3832510 Series

Actuator Marking	No Marking	No Marking
Actuator Type	Round, Button	Round, Button
Circuit	SPDT	SPDT
Color - Actuator/Cap	Blue	Black, Green, Blue, Red
Current Rating (Amps)	16 A	16 A
Ingress Protection	IP40	IP40
Mounting Type	Panel Mount, Rear	Panel Mount, Rear
Panel Cutout Dimensions [diameter]	12.7 mm	12.7 mm
Switch Function	On-Mom	On-Mom
Termination Style	Quick Connect - 0.250" (6.3mm)	Quick Connect - 0.250" (6.3mm)
Type	Standard	Standard
Voltage Rating - AC	250 V	250 V

Part	Mounting Type	Type	Ingress Protection	Current Rating (Amps)	Switch Function	Termination Style	Actuator Marking	Circuit	Voltage Rating - AC	Actuator Type	Panel Cutout Dimensions [diameter]	Color - Actuator/Cap
BULGIN LIMITED 3832510KB	Panel Mount, Rear	Standard	IP40	16 A	On-Mom	Quick Connect - 0.250" (6.3mm)	No Marking	SPDT	250 V	Button, Round	12.7 mm	Black
BULGIN LIMITED 3832510MG	Panel Mount, Rear	Standard	IP40	16 A	On-Mom	Quick Connect - 0.250" (6.3mm)	No Marking	SPDT	250 V	Button, Round	12.7 mm	Green
BULGIN LIMITED 3832510MBL	Panel Mount, Rear	Standard	IP40	16 A	On-Mom	Quick Connect - 0.250" (6.3mm)	No Marking	SPDT	250 V	Button, Round	12.7 mm	Blue
BULGIN LIMITED 3832510PR	Panel Mount, Rear	Standard	IP40	16 A	On-Mom	Quick Connect - 0.250" (6.3mm)	No Marking	SPDT	250 V	Button, Round	12.7 mm	Red
