216520-4
ActiveTE Connectivity AMP Connectors
30P.IEC-F FEM.CONN.
216520-4
ActiveTE Connectivity AMP Connectors
30P.IEC-F FEM.CONN.
Description
General part information
216520-4

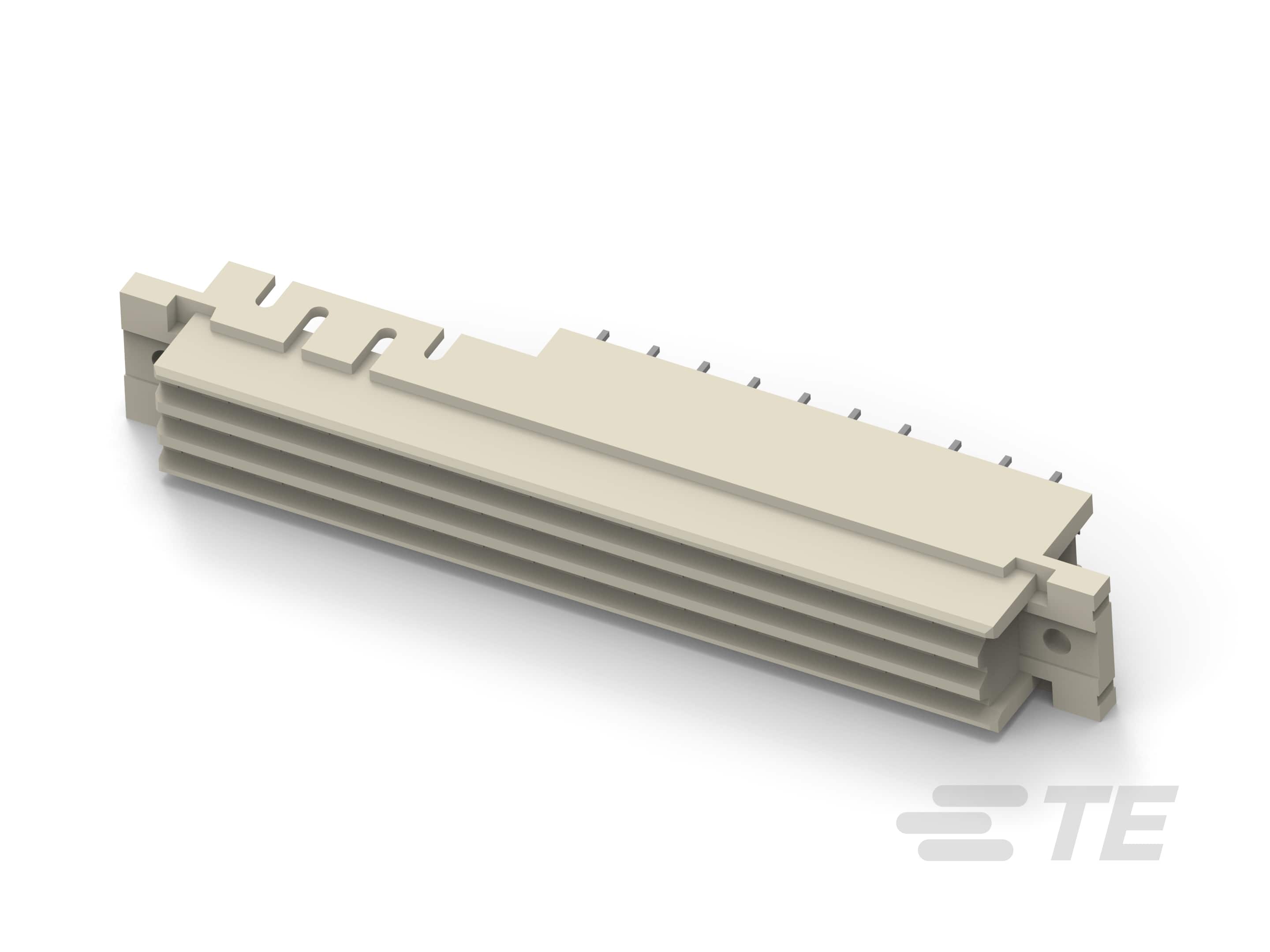

Receptacle, Board-to-Board, 30 Position, 5.08 mm [.2 in] Centerline, Printed Circuit Board, 3 Row, Right Angle, 10 Column, Eurocard Connectors
Technical Specifications
Parameters and characteristics for this part
| Specification | 216520-4 |
|---|---|
| Connector Type | Receptacle, Female Sockets |
| Contact Finish | Gold |
| Contact Finish Thickness | 31.5 µin |
| Level, Class | 2 |
| Mounting Type | Through Hole |
| Number of Positions | 30 |
| Number of Positions Loaded | All |
| Number of Rows | 3 |
| Pitch | 5.08 mm |
| Style | F |
| Termination | Solder |
