SD121-09
ActivePasternack

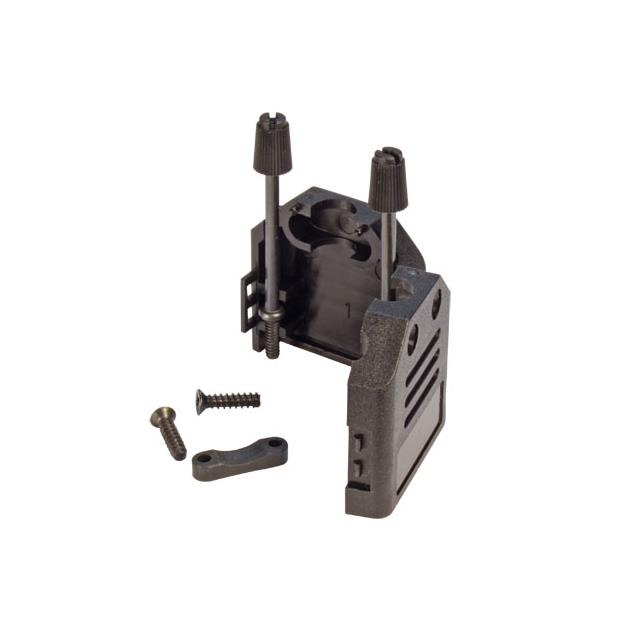

D SUB BACKSHELL, SD121 SERIES, DE, 180°, PP (POLYPROPYLENE) BODY
SD121-09
ActivePasternack
D SUB BACKSHELL, SD121 SERIES, DE, 180°, PP (POLYPROPYLENE) BODY
Description
General part information
SD121-09
9, 15 Position Two Piece Backshell Connector Black 180° Unshielded
Technical Specifications
Parameters and characteristics for this part
| Specification | SD121-09 |
|---|---|
| Accessory Type | Two Piece Backshell |
| Cable Exit Angle | 180 ° |
| Cable Type | Round |
| Color | Black |
| Features | Mating Screws 4-40 |
| Hardware | Cable Clamp, Strain Relief, Assembly Hardware |
| Material | Polypropylene (PP) |
| Number of Positions | 15, 9 |
| Number of Positions (Max) | 15 |
| Number of Positions (Min) | 9 |
| Primary Material | Plastic |
| Shielding | Unshielded |
