Description
General part information
COM-10613

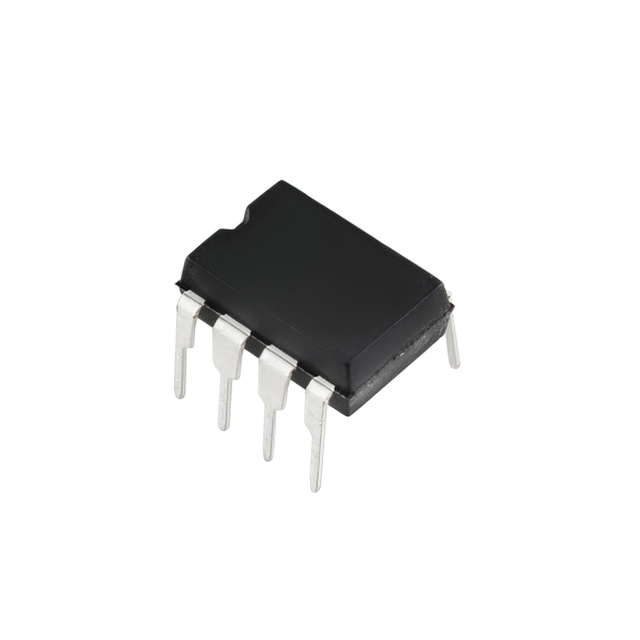

Digital Potentiometer 10k Ohm 1 Circuit 129 Taps SPI Interface 8-PDIP
Technical Specifications
Parameters and characteristics for this part
| Specification | COM-10613 |
|---|---|
| Configuration | Potentiometer |
| Interface | SPI |
| Memory Type | Volatile |
| Mounting Type | Through Hole |
| Number of Circuits | 1 |
| Number of Taps | 129 |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Package Length | 0.3 in |
| Package Name | 8-PDIP, 8-DIP |
| Package Width | 7.62 mm |
| Resistance | 10 kOhm |
| Resistance - Wiper (Typ) | 75 Ohm |
| Taper | Linear |
| Temperature Coefficient (Typ) | 150 ppm/°C |
| Tolerance | 20 % |
| Voltage - Supply (Maximum) | 5.5 V |
| Voltage - Supply (Minimum) | 1.8 V |
