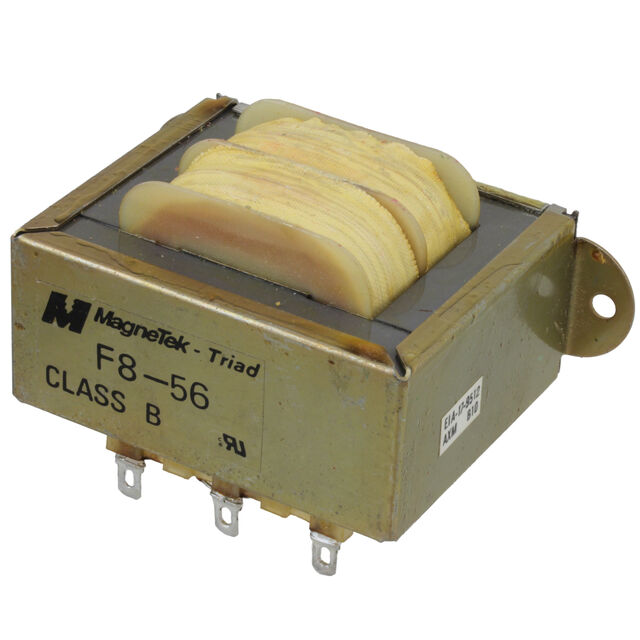

F8-56
ActiveTriad Magnetics
POWER XFMR 56.0VCT@1.5A UL/CUL 115V QUICK PACK W/LUGS/F8-56 ROHS COMPLIANT: NO
F8-56
ActiveTriad Magnetics
POWER XFMR 56.0VCT@1.5A UL/CUL 115V QUICK PACK W/LUGS/F8-56 ROHS COMPLIANT: NO
Description
General part information
F8-56
POWER XFMR 56.0VCT@1.5A UL/CUL 115V QUICK PACK W/LUGS/F8-56 ROHS COMPLIANT: NO
Technical Specifications
Parameters and characteristics for this part
| Specification | F8-56 |
|---|---|
| Center Tap | Yes |
| Current - Output (Max) | 1.8 A |
| Height - Seated (Max) | 65.07 mm |
| Mounting Type | Chassis Mount |
| Power - Max | 100 VA |
| Primary Winding(s) | Single |
| Quick Connect Size (0.187") | 0.187 in |
| Secondary Winding(s) | Single |
| Size / Dimension Length | 102.39 mm |
| Size / Dimension Width | 2.25 in |
| Termination Style | Solder, Quick Connect |
| Type | Laminated Core |
| Voltage - Isolation | 2500 Vrms |
| Voltage - Primary | 115 V |
| Voltage - Secondary (Full Load) | 56 V |
| Weight | 2.8 lbs |
