395-013-558-658
ActiveEDAC Inc.

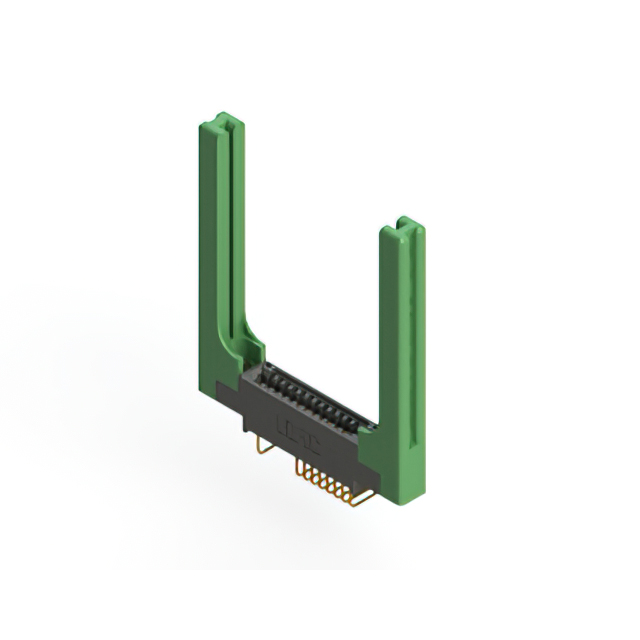

CONN EDGE SINGLE FML 13POS 0.100
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
395-013-558-658
ActiveEDAC Inc.
CONN EDGE SINGLE FML 13POS 0.100
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 395-013-558-658 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Single Edge |
| Color | Black |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Features | Card Guides |
| Flange Feature | Top Mount Opening, 4-40, Threaded Insert |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 13 |
| Number of Positions/Bay/Row [custom] | 13 |
| Number of Rows | 1 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
| Read Out | Single |
| Termination | Solder |
| Termination Rows | 1 |
395-013 Series
...
| Part | Number of Positions | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Contact Material | Contact Finish Thickness | Contact Finish Thickness | Number of Rows | Operating Temperature [Min] | Operating Temperature [Max] | Number of Positions/Bay/Row [custom] | Read Out | Material - Insulation | Features | Gender | Contact Type | Card Type | Flange Feature | Contact Finish | Termination | Termination Rows | Mounting Type | Color | Pitch [x] | Pitch [x] | Flange Feature [diameter] | Flange Feature [diameter] | Flange Feature | Flange Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | 13 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | 10 Áin | 0.25 Ám | 1 | -40 °C | 105 ░C | 13 | Single | Polyester Thermoplastic | Card Guides | Female | Cantilever | Non Specified - Single Edge | 4-40 Threaded Insert Top Mount Opening | Gold | Wire Wrap | 1 | Through Hole | Black | 2.54 mm | 0.1 in | ||||
EDAC Inc. | 13 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | 10 Áin | 0.25 Ám | 1 | -40 °C | 105 ░C | 13 | Single | Polyester Thermoplastic | Female | Cantilever | Non Specified - Single Edge | Floating Bobbin Top Mount Opening | Gold | Solder | 1 | Through Hole | Black | 2.54 mm | 0.1 in | 2.95 mm | 0.116 in | |||
EDAC Inc. | 13 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | 10 Áin | 0.25 Ám | 1 | -40 °C | 105 ░C | 13 | Single | Polyester Thermoplastic | Female | Cantilever | Non Specified - Single Edge | 4-40 Threaded Insert Top Mount Opening | Gold | Wire Wrap | 1 | Through Hole | Black | 2.54 mm | 0.1 in | |||||
EDAC Inc. | 13 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | 10 Áin | 0.25 Ám | 1 | -40 °C | 105 ░C | 13 | Single | Polyester Thermoplastic | Female | Cantilever | Non Specified - Single Edge | Gold | Solder | 1 | Through Hole | Black | 2.54 mm | 0.1 in | 3.25 mm | 0.128 in | ||||
EDAC Inc. | 13 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | 10 Áin | 0.25 Ám | 1 | -40 °C | 105 ░C | 13 | Single | Polyester Thermoplastic | Card Guides | Female | Cantilever | Non Specified - Single Edge | 4-40 Threaded Insert Top Mount Opening | Gold | Solder | 1 | Through Hole Right Angle | Black | 2.54 mm | 0.1 in | ||||
EDAC Inc. | 13 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | 10 Áin | 0.25 Ám | 1 | -40 °C | 105 ░C | 13 | Single | Polyester Thermoplastic | Female | Cantilever | Non Specified - Single Edge | Flush Mount Side Opening Unthreaded | Gold | Wire Wrap | 1 | Through Hole | Black | 2.54 mm | 0.1 in | 3.25 mm | 0.128 " | |||
EDAC Inc. | 13 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | 10 Áin | 0.25 Ám | 1 | -40 °C | 105 ░C | 13 | Single | Polyester Thermoplastic | Female | Cantilever | Non Specified - Single Edge | Top Mount Opening Unthreaded | Gold | Solder | 1 | Through Hole | Black | 2.54 mm | 0.1 in | 3.96 mm | 0.156 in | |||
EDAC Inc. | 13 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | 10 Áin | 0.25 Ám | 1 | -40 °C | 105 ░C | 13 | Single | Polyester Thermoplastic | Female | Cantilever | Non Specified - Single Edge | Flush Mount Top Opening Unthreaded | Gold | Solder | 1 | Through Hole | Black | 2.54 mm | 0.1 in | 3.25 mm | 0.128 " | |||
EDAC Inc. | 13 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | 10 Áin | 0.25 Ám | 1 | -40 °C | 105 ░C | 13 | Single | Polyester Thermoplastic | Female | Cantilever | Non Specified - Single Edge | M3 Threaded Insert Top Mount Opening | Gold | Wire Wrap | 1 | Through Hole | Black | 2.54 mm | 0.1 in | |||||
EDAC Inc. | 13 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | 10 Áin | 0.25 Ám | 1 | -40 °C | 105 ░C | 13 | Single | Polyester Thermoplastic | Female | Cantilever | Non Specified - Single Edge | M3 Threaded Insert Top Mount Opening | Gold | Solder | 1 | Through Hole | Black | 2.54 mm | 0.1 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 25 | $ 13.97 | |
Description
General part information
395-013 Series
13 Position Female Connector Non Specified - Single Edge Gold 0.100" (2.54mm) Black
