DRA73-1R0-R
ActiveEaton - Electronics Division
FIXED IND 1UH 6.5A 6.7 MOHM SMD
DRA73-1R0-R
ActiveEaton - Electronics Division
FIXED IND 1UH 6.5A 6.7 MOHM SMD
Description
General part information
DRA73-1R0-R

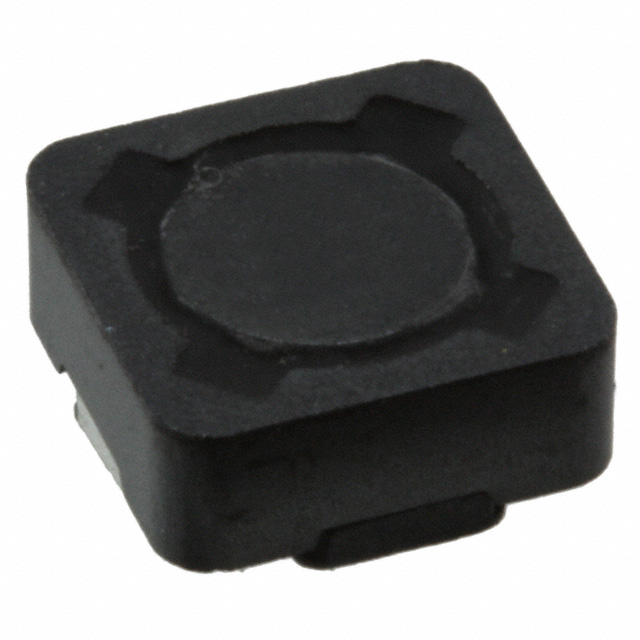

1 µH Shielded Wirewound Inductor 6.5 A 6.7mOhm Nonstandard
Technical Specifications
Parameters and characteristics for this part
| Specification | DRA73-1R0-R |
|---|---|
| Current - Saturation (Isat) | 8.22 A |
| Current Rating | 6.5 A |
| DC Resistance (DCR) | 6.7 mOhm |
| Height - Seated (Max) | 0.14 in |
| Inductance | 1 µH |
| Inductance Frequency - Test | 100 kHz |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 165 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Nonstandard |
| Ratings | AEC-Q200 |
| Shielding | Shielded |
| Size / Dimension Length | 0.299 in |
| Size / Dimension Width | 0.299 in |
| Tolerance | 20 % |
| Type | Wirewound |
