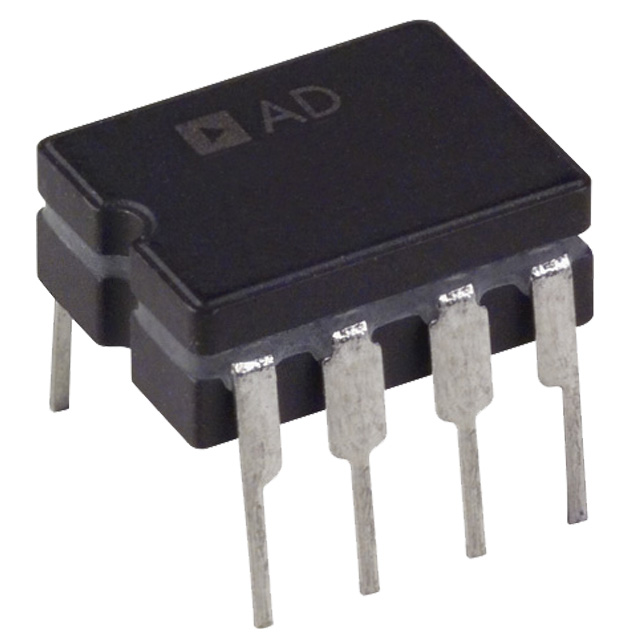

AD847SQ
ActiveAnalog Devices Inc
HIGH SPEED, LOW POWER MONOLITHIC OP AMP
Deep-Dive with AI
Search across all available documentation for this part.
AD847SQ
ActiveAnalog Devices Inc
HIGH SPEED, LOW POWER MONOLITHIC OP AMP
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | AD847SQ | AD847 Series |
|---|---|---|
| Amplifier Type | General Purpose | General Purpose |
| Board Type | - | Bare (Unpopulated) |
| Channels per IC | - | 1 |
| Current - Input Bias | 3.3 µA | 3.3 µA |
| Current - Output / Channel [custom] | 32 mA | 32 mA |
| Current - Supply | 5.3 mA | 5.3 mA |
| Gain Bandwidth Product | 50 MHz | 50 MHz |
| Mounting Type | Through Hole | Surface Mount, Through Hole |
| Number of Circuits | 1 | 1 |
| Operating Temperature [Max] | 125 °C | 70 - 125 °C |
| Operating Temperature [Min] | -55 °C | -55 - 0 °C |
| Package / Case | 8-CDIP | 8-SOIC, 8-CDIP, 8-DIP |
| Package / Case | 7.62 mm | 7.62 mm |
| Package / Case | 0.3 in | 0.3 - 7.62 in |
| Package / Case | - | 0.3 - 3.9 mm |
| Slew Rate | 300 V/µs | 300 V/µs |
| Supplied Contents | - | Board(s) |
| Supplier Device Package | 8-CERDIP | 8-SOIC, 8-CERDIP, 8-PDIP |
| Utilized IC / Part | - | 8-SOIC Package |
| Voltage - Input Offset | 500 çV | 500 çV |
| Voltage - Supply Span (Max) [Max] | 36 V | 36 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
AD847 Series
High Speed, Low Power Monolithic Op Amp
| Part | Voltage - Input Offset | Gain Bandwidth Product | Number of Circuits | Current - Output / Channel [custom] | Package / Case | Package / Case | Slew Rate | Current - Input Bias | Supplier Device Package | Operating Temperature [Min] | Operating Temperature [Max] | Voltage - Supply Span (Max) [Max] | Current - Supply | Amplifier Type | Mounting Type | Board Type | Channels per IC | Supplied Contents | Utilized IC / Part | Package / Case | Package / Case |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Analog Devices Inc AD847ARZ-REEL7The AD847 represents a breakthrough in high speed amplifiers offing superior ac & dc perfomance and low power, all at low cost. The excellent dc performance is demonstrated by its ±5 V specifications which include an open-loop gain of 3500 V/V (500 Ohm load) and low input offset voltage of 0.5 mV. Common-mode rejection is a minimum of 78 dB. Output voltage swing is ±3 V into loads as low as 150 Ohm. Analog Devices also offers over 30 other high speed amplifiers from the low noise AD829 (1.7nV/(root)Hz) to the ultimate video amplifier, the AD811, which features 0.01% differential gain and 0.01° differential phase. | 500 çV | 50 MHz | 1 | 32 mA | 3.9 mm | 8-SOIC | 300 V/µs | 3.3 µA | 8-SOIC | -40 °C | 85 °C | 36 V | 5.3 mA | General Purpose | Surface Mount | ||||||
500 çV | 50 MHz | 1 | 32 mA | 3.9 mm | 8-SOIC | 300 V/µs | 3.3 µA | 8-SOIC | -40 °C | 85 °C | 36 V | 5.3 mA | General Purpose | Surface Mount | |||||||
500 çV | 50 MHz | 1 | 32 mA | 3.9 mm | 8-SOIC | 300 V/µs | 3.3 µA | 8-SOIC | -40 °C | 85 °C | 36 V | 5.3 mA | General Purpose | Surface Mount | |||||||
Analog Devices Inc AD847AR-EBZ8-SOIC Package 1 - Single Channels per IC General Purpose Amplifier Evaluation Board | General Purpose | Bare (Unpopulated) | 1 | Board(s) | 8-SOIC Package | ||||||||||||||||
Analog Devices Inc AD847JRZThe AD847 represents a breakthrough in high speed amplifiers offing superior ac & dc perfomance and low power, all at low cost. The excellent dc performance is demonstrated by its ±5 V specifications which include an open-loop gain of 3500 V/V (500 Ohm load) and low input offset voltage of 0.5 mV. Common-mode rejection is a minimum of 78 dB. Output voltage swing is ±3 V into loads as low as 150 Ohm. Analog Devices also offers over 30 other high speed amplifiers from the low noise AD829 (1.7nV/(root)Hz) to the ultimate video amplifier, the AD811, which features 0.01% differential gain and 0.01° differential phase. | 500 çV | 50 MHz | 1 | 32 mA | 3.9 mm | 8-SOIC | 300 V/µs | 3.3 µA | 8-SOIC | 0 °C | 70 ░C | 36 V | 5.3 mA | General Purpose | Surface Mount | ||||||
500 çV | 50 MHz | 1 | 32 mA | 3.9 mm | 8-SOIC | 300 V/µs | 3.3 µA | 8-SOIC | 0 °C | 70 ░C | 36 V | 5.3 mA | General Purpose | Surface Mount | |||||||
Analog Devices Inc AD847SQThe AD847 represents a breakthrough in high speed amplifiers offing superior ac & dc perfomance and low power, all at low cost. The excellent dc performance is demonstrated by its ±5 V specifications which include an open-loop gain of 3500 V/V (500 Ohm load) and low input offset voltage of 0.5 mV. Common-mode rejection is a minimum of 78 dB. Output voltage swing is ±3 V into loads as low as 150 Ohm. Analog Devices also offers over 30 other high speed amplifiers from the low noise AD829 (1.7nV/(root)Hz) to the ultimate video amplifier, the AD811, which features 0.01% differential gain and 0.01° differential phase. | 500 çV | 50 MHz | 1 | 32 mA | 8-CDIP | 300 V/µs | 3.3 µA | 8-CERDIP | -55 °C | 125 °C | 36 V | 5.3 mA | General Purpose | Through Hole | 7.62 mm | 0.3 in | |||||
Analog Devices Inc AD847JRZ-REEL7The AD847 represents a breakthrough in high speed amplifiers offing superior ac & dc perfomance and low power, all at low cost. The excellent dc performance is demonstrated by its ±5 V specifications which include an open-loop gain of 3500 V/V (500 Ohm load) and low input offset voltage of 0.5 mV. Common-mode rejection is a minimum of 78 dB. Output voltage swing is ±3 V into loads as low as 150 Ohm. Analog Devices also offers over 30 other high speed amplifiers from the low noise AD829 (1.7nV/(root)Hz) to the ultimate video amplifier, the AD811, which features 0.01% differential gain and 0.01° differential phase. | 500 çV | 50 MHz | 1 | 32 mA | 3.9 mm | 8-SOIC | 300 V/µs | 3.3 µA | 8-SOIC | 0 °C | 70 ░C | 36 V | 5.3 mA | General Purpose | Surface Mount | ||||||
Analog Devices Inc AD847ARZ-REELThe AD847 represents a breakthrough in high speed amplifiers offing superior ac & dc perfomance and low power, all at low cost. The excellent dc performance is demonstrated by its ±5 V specifications which include an open-loop gain of 3500 V/V (500 Ohm load) and low input offset voltage of 0.5 mV. Common-mode rejection is a minimum of 78 dB. Output voltage swing is ±3 V into loads as low as 150 Ohm. Analog Devices also offers over 30 other high speed amplifiers from the low noise AD829 (1.7nV/(root)Hz) to the ultimate video amplifier, the AD811, which features 0.01% differential gain and 0.01° differential phase. | 500 çV | 50 MHz | 1 | 32 mA | 3.9 mm | 8-SOIC | 300 V/µs | 3.3 µA | 8-SOIC | -40 °C | 85 °C | 36 V | 5.3 mA | General Purpose | Surface Mount | ||||||
500 çV | 50 MHz | 1 | 32 mA | 0.3 in | 8-DIP | 300 V/µs | 3.3 µA | 8-PDIP | 0 °C | 70 ░C | 36 V | 5.3 mA | General Purpose | Through Hole | 7.62 mm | ||||||
500 çV | 50 MHz | 1 | 32 mA | 3.9 mm | 8-SOIC | 300 V/µs | 3.3 µA | 8-SOIC | 0 °C | 70 ░C | 36 V | 5.3 mA | General Purpose | Surface Mount | |||||||
Analog Devices Inc AD847JRZ-REELThe AD847 represents a breakthrough in high speed amplifiers offing superior ac & dc perfomance and low power, all at low cost. The excellent dc performance is demonstrated by its ±5 V specifications which include an open-loop gain of 3500 V/V (500 Ohm load) and low input offset voltage of 0.5 mV. Common-mode rejection is a minimum of 78 dB. Output voltage swing is ±3 V into loads as low as 150 Ohm. Analog Devices also offers over 30 other high speed amplifiers from the low noise AD829 (1.7nV/(root)Hz) to the ultimate video amplifier, the AD811, which features 0.01% differential gain and 0.01° differential phase. | 500 çV | 50 MHz | 1 | 32 mA | 3.9 mm | 8-SOIC | 300 V/µs | 3.3 µA | 8-SOIC | 0 °C | 70 ░C | 36 V | 5.3 mA | General Purpose | Surface Mount | ||||||
Analog Devices Inc AD847ARZThe AD847 represents a breakthrough in high speed amplifiers offing superior ac & dc perfomance and low power, all at low cost. The excellent dc performance is demonstrated by its ±5 V specifications which include an open-loop gain of 3500 V/V (500 Ohm load) and low input offset voltage of 0.5 mV. Common-mode rejection is a minimum of 78 dB. Output voltage swing is ±3 V into loads as low as 150 Ohm. Analog Devices also offers over 30 other high speed amplifiers from the low noise AD829 (1.7nV/(root)Hz) to the ultimate video amplifier, the AD811, which features 0.01% differential gain and 0.01° differential phase. | 500 çV | 50 MHz | 1 | 32 mA | 3.9 mm | 8-SOIC | 300 V/µs | 3.3 µA | 8-SOIC | -40 °C | 85 °C | 36 V | 5.3 mA | General Purpose | Surface Mount | ||||||
500 çV | 50 MHz | 1 | 32 mA | 3.9 mm | 8-SOIC | 300 V/µs | 3.3 µA | 8-SOIC | 0 °C | 70 ░C | 36 V | 5.3 mA | General Purpose | Surface Mount | |||||||
500 çV | 50 MHz | 1 | 32 mA | 3.9 mm | 8-SOIC | 300 V/µs | 3.3 µA | 8-SOIC | -40 °C | 85 °C | 36 V | 5.3 mA | General Purpose | Surface Mount |
Description
General part information
AD847 Series
The AD847 represents a breakthrough in high speed amplifiers offing superior ac & dc perfomance and low power, all at low cost. The excellent dc performance is demonstrated by its ±5 V specifications which include an open-loop gain of 3500 V/V (500 Ohm load) and low input offset voltage of 0.5 mV. Common-mode rejection is a minimum of 78 dB. Output voltage swing is ±3 V into loads as low as 150 Ohm. Analog Devices also offers over 30 other high speed amplifiers from the low noise AD829 (1.7nV/(root)Hz) to the ultimate video amplifier, the AD811, which features 0.01% differential gain and 0.01° differential phase.
