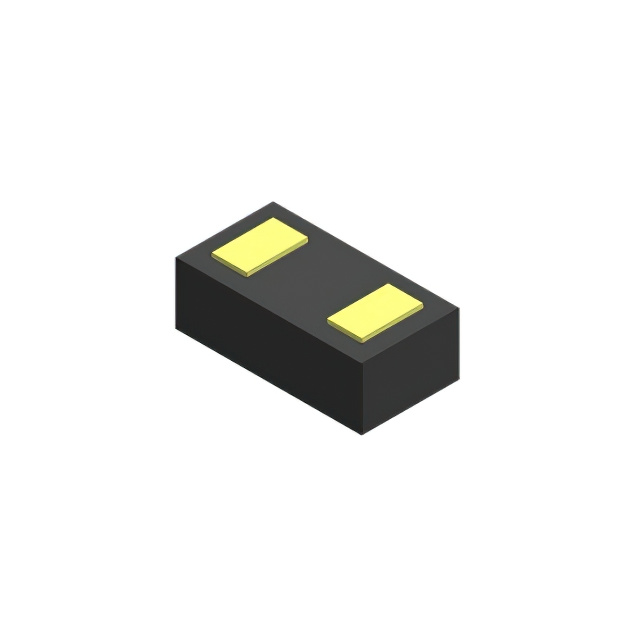

CDBWL0240L-HF
ActiveComchip Technology
DIODE SCHOTTKY 40V 200MA 01005
CDBWL0240L-HF
ActiveComchip Technology
DIODE SCHOTTKY 40V 200MA 01005
Description
General part information
CDBWL0240L-HF
Diode 40 V 200mA Surface Mount 1005
Technical Specifications
Parameters and characteristics for this part
| Specification | CDBWL0240L-HF |
|---|---|
| Capacitance | 6 pF |
| Current - Average Rectified (Io) | 200 mA |
| Current - Reverse Leakage | 30 µA |
| Mounting Type | Surface Mount |
| Operating Temperature - Junction (Max) | 125 °C |
| Operating Temperature - Junction (Min) | -55 °C |
| Package / Case | 01005 (0402 Metric) |
| Package Name | 1005 |
| Speed | Any Speed, Small Signal |
| Speed - Fast Recovery (Maximum) | 200 mA |
| Speed - Small Signal Current Max | 200 mA, 200 mA, 200 mA |
| Technology | Schottky |
| Voltage - DC Reverse (Vr) (Max) | 40 V |
| Voltage - Forward (Vf) (Max) | 540 mV |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
