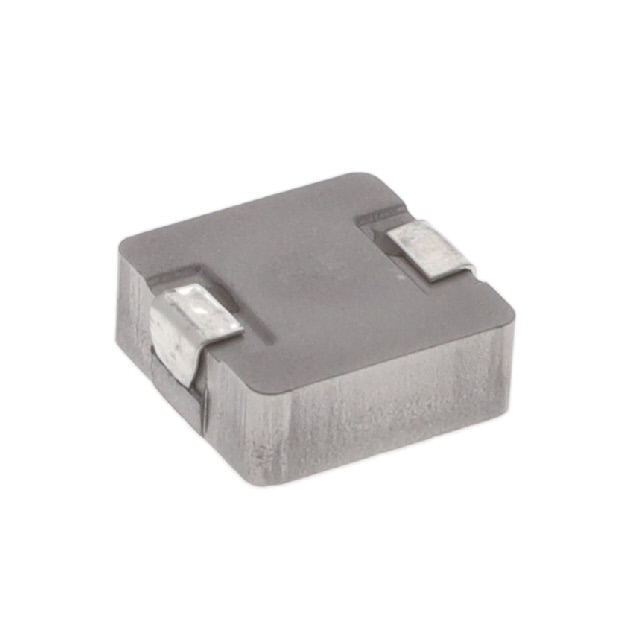

CMLB135T-1R0MS
ActiveDelta Electronics/Cyntec
FIXED IND 1UH 26A 2.2 MOHM SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
CMLB135T-1R0MS
ActiveDelta Electronics/Cyntec
FIXED IND 1UH 26A 2.2 MOHM SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | CMLB135T-1R0MS | CMLB135T Series |
|---|---|---|
| Current - Saturation (Isat) | 32.5 A | 6.8 - 47.4 A |
| Current Rating (Amps) | 26 A | 5.8 - 37 A |
| DC Resistance (DCR) | - | 1.1 mOhm |
| DC Resistance (DCR) [Max] | 2.2 mOhm | 2.2 - 35 mOhm |
| Height - Seated (Max) [Max] [z] | 0.197 in | 0.197 in |
| Height - Seated (Max) [Max] [z] | 5 mm | 5 mm |
| Inductance | 1 µH | 1 - 470 nH |
| Inductance Frequency - Test | 100 kHz | 100 kHz |
| Material - Core | Metal | Metal |
| Mounting Type | Surface Mount | Surface Mount |
| Operating Temperature [Max] | 125 °C | 125 °C |
| Operating Temperature [Min] | -55 °C | -55 °C |
| Package / Case | Nonstandard | Nonstandard |
| Shielding | Shielded | Shielded |
| Tolerance | 20 % | 20 % |
CMLB135T Series
FIXED IND 470NH 37A 1.1MOHM SMD
| Part | Mounting Type | Tolerance | Current - Saturation (Isat) | Package / Case | Material - Core | Inductance | Height - Seated (Max) [Max] [z] | Height - Seated (Max) [Max] [z] | Shielding | Inductance Frequency - Test | Operating Temperature [Min] | Operating Temperature [Max] | Current Rating (Amps) | DC Resistance (DCR) | DC Resistance (DCR) [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Delta Electronics/Cyntec CMLB135T-R47MS | Surface Mount | 20 % | 47.4 A | Nonstandard | Metal | 470 nH | 0.197 in | 5 mm | Shielded | 100 kHz | -55 °C | 125 °C | 37 A | 1.1 mOhm | |
Delta Electronics/Cyntec CMLB135T-3R3MS | Surface Mount | 20 % | 19.5 A | Nonstandard | Metal | 3.3 µH | 0.197 in | 5 mm | Shielded | 100 kHz | -55 °C | 125 °C | 15.5 A | ||
Delta Electronics/Cyntec CMLB135T-150MS | Surface Mount | 20 % | 6.8 A | Nonstandard | Metal | 15 µH | 0.197 in | 5 mm | Shielded | 100 kHz | -55 °C | 125 °C | 5.8 A | 35 mOhm | |
Delta Electronics/Cyntec CMLB135T-1R0MS | Surface Mount | 20 % | 32.5 A | Nonstandard | Metal | 1 µH | 0.197 in | 5 mm | Shielded | 100 kHz | -55 °C | 125 °C | 26 A | 2.2 mOhm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 2.16 | |
| 10 | $ 1.84 | |||
| 25 | $ 1.69 | |||
| 50 | $ 1.51 | |||
| 100 | $ 1.26 | |||
| 250 | $ 1.23 | |||
| Digi-Reel® | 1 | $ 2.16 | ||
| 10 | $ 1.84 | |||
| 25 | $ 1.69 | |||
| 50 | $ 1.51 | |||
| 100 | $ 1.26 | |||
| 250 | $ 1.23 | |||
| Tape & Reel (TR) | 500 | $ 0.79 | ||
Description
General part information
CMLB135T Series
1 µH Shielded Inductor 26 A 2.2mOhm Max Nonstandard
