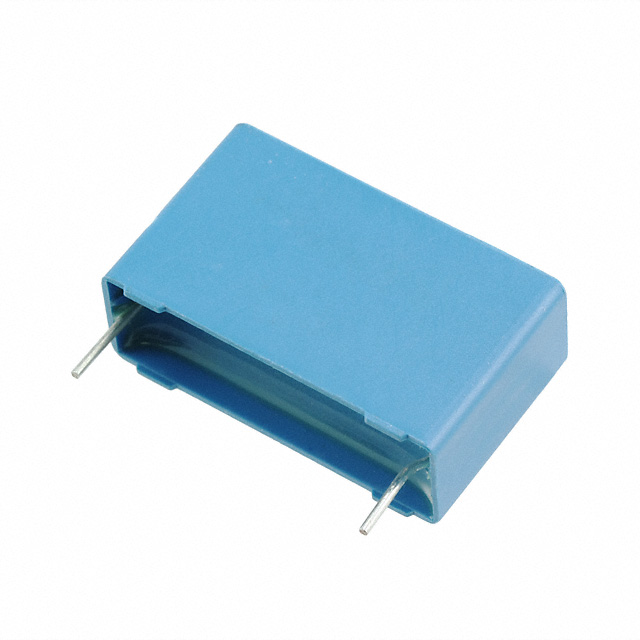

Specification	B32934A3335M

Applications	EMI, Automotive, RFI Suppression
Capacitance	3.3 µF
Dielectric Material	Polyester, Metallized
Features	85C/85% Humidity, 85% Humidity, 85C Humidity
Height - Seated (Max)	1.22 in
Lead Spacing	1.083 in
Mounting Type	Through Hole
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-40 °C
Package / Case	Radial
Ratings	X2, AEC-Q200
Size / Dimension Length	1.24 in
Size / Dimension Width	0.827 in
Termination	PC Pins
Tolerance	20 %
Voltage Rating - AC	305 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Technical documentation and resources
