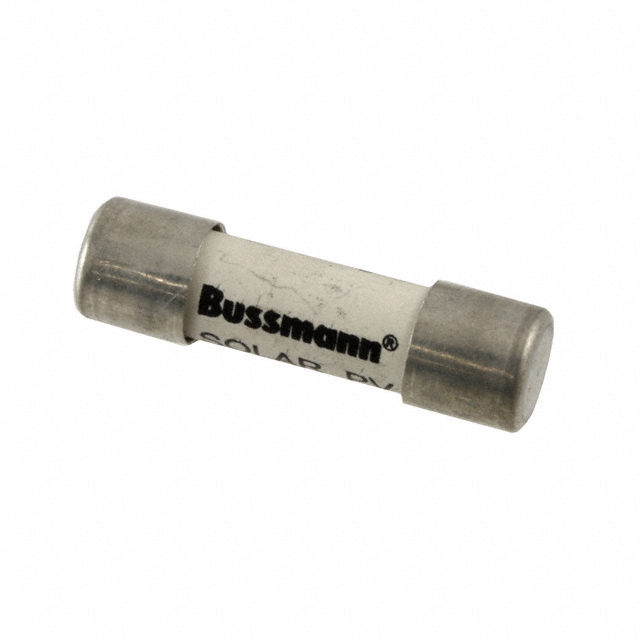

5AMP 1000V DC SOLAR FERRULE 10 X 38MM
PV-5A10F
ActiveEaton - Electronics Division
5AMP 1000V DC SOLAR FERRULE 10 X 38MM
Description
General part information
PV-5A10F
5A 1 kVDC Fuse Cartridge Requires Holder
Technical Specifications
Parameters and characteristics for this part
| Specification | PV-5A10F |
|---|---|
| Applications | Solar (Photovoltaic) |
| Approval Agency | UL, CSA, CCC |
| Breaking Capacity | 50 kA |
| Current Rating | 5 A |
| Fuse Type | Cartridge |
| Melting I²t | 19 |
| Mounting Type | Requires Holder |
| Operating Temperature (Max) | 90 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | 5AG, 10mm x 38mm (Midget) |
| Package Features | Midget |
| Package Length | 10 mm |
| Package Name | 5AG Midget, 5AG |
| Package Width | 38 mm |
| Size / Dimension Diameter | 0.406 in |
| Size / Dimension Length | 1.496 in |
| Voltage Rating - DC | 1 kV |
