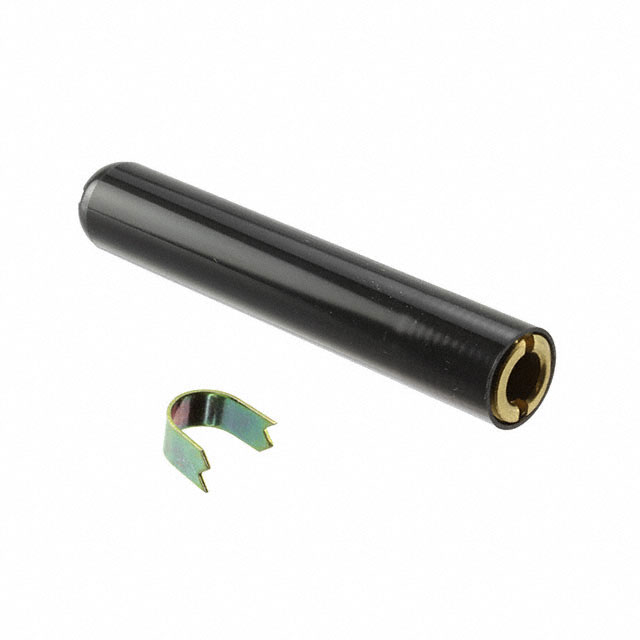

820Z
ObsoleteSWITCHCRAFT/CONXALL
CONN JACK MONO 6.35MM
820Z
ObsoleteSWITCHCRAFT/CONXALL
CONN JACK MONO 6.35MM
Description
General part information
820Z
6.35mm (0.250", 1/4") - Headphone Phone Jack Mono Connector Screw
Technical Specifications
Parameters and characteristics for this part
| Specification | 820Z |
|---|---|
| Actual Diameter | 0.25 in |
| Body Material | Copper Alloy |
| Cable Opening | 0.26 in |
| Connector Type | Phone Jack |
| Contact Material | Copper Alloy |
| Gender | Female |
| Housing Material | Copper Alloy |
| Includes | Connector, Handle, Clip |
| Includes Total Count | 3 pcs |
| Industry Recognized Mating Diameter (Headphone) | 6.35 mm |
| Internal Switch(s) | Does Not Contain Switch |
| Mounting Type | Free Hanging (In-Line) |
| Number of Conductors | 2 Conductors |
| Number of Contacts | 2 Contacts |
| Shielding | Unshielded |
| Signal Lines | Mono |
| Termination | Screw |
