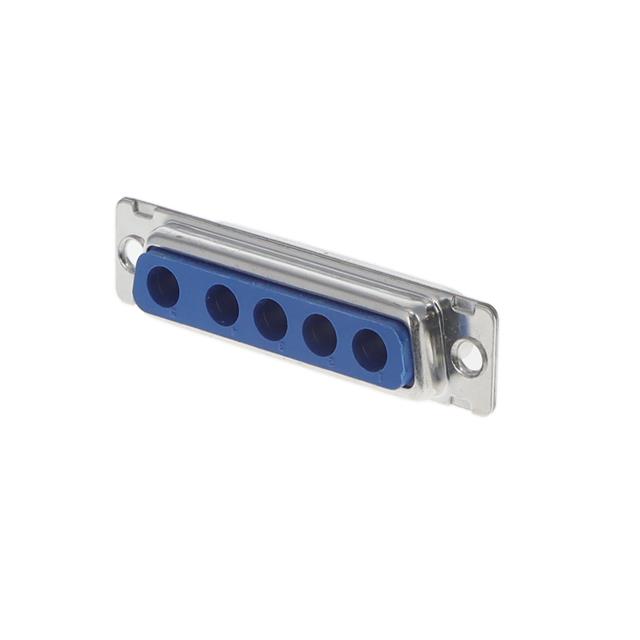

Specification	CBD5W5F0000X/AA

Color	Blue
Connector Layout	DB, B
Connector Style	Combo, D-Sub
Connector Type	Receptacle for Female Contacts
Contact Type	Power
Dielectric Material	Glass Filled, Polyester
Features	Shielded
Finish	Tin Plated
Flange Feature	Shell (Unthreaded), Housing
Ingress Protection Description	Dust Tight, Water Resistant, Waterproof
Ingress Protection IP Rating	IP67, IP65
Mating Cycles	500 cycles
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	5
Number of Rows	1
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-55 °C
Part Code	5W5
Position Types	Power
Primary Material	Metal
Shell Material	Steel
Shell Size	3

CBD Series

...

Part	Material Flammability Rating	Shell Size	Connector Layout	Part Code	Contact Finish Thickness (string set options)	Contact Finish Thickness	Connector Type	Flange Feature	Current Rating	Connector Style	Number of Rows	Number of Positions (Total)	Position Types	Number of Positions (Standard)	Number of Positions (Special)	Contact Finish	Finish	Shell Material	Ingress Protection Description	Ingress Protection IP Rating	Termination	Contact Type	Mounting Type	Shell Material, Finish	Features	Number of Positions
McGill Microwave Systems CBD47W1M35S0V3X	UL94 V-0	5	D DD	47W1	Flash	Flash	Male Pins Plug	Board Side (4-40)	7.5 A	Combo D-Sub	3	47	Coax Power	46	1	Gold	Tin Plated	Steel	Dust Tight Water Resistant Waterproof	IP65 IP67	Solder	Coax or Power Signal	Through Hole
McGill Microwave Systems CBD27W2F20HE3S	UL94 V-0	4	C DC	27W2	Flash	Flash	Female Sockets Receptacle	Cable Side Male Jackscrew (4-40)	7.5 A	Combo D-Sub	2	27	Coax Power	25	2	Gold			Dust Tight Water Resistant Waterproof	IP65 IP67	Solder Cup	Coax or Power Signal	Free Hanging (In-Line)	Passivated Stainless Steel	Backshell Cable Clamp Mounting Hardware
McGill Microwave Systems CBD11W1M65S50TZ/AA	UL94 V-0	2	A DA	11C1 11W1	Flash	Flash	Male Pins Plug	Female Screwlock (4-40) Mating Side	7.5 A	Combo D-Sub	2	11	Coax Power	10	1	Gold	Tin Plated	Steel	Dust Tight Water Resistant Waterproof	IP65 IP67	Solder	Coax or Power Signal	Through Hole		Shielded
McGill Microwave Systems CBD25W3M3500E3Z	UL94 V-0	4	C DC	25W3	Flash	Flash	Male Pins Plug	Cable Side Male Jackscrew (4-40)	7.5 A	Combo D-Sub	2	25	Coax Power	22	3	Gold	Tin Plated	Steel	Dust Tight Water Resistant Waterproof	IP65 IP67	Solder	Coax or Power Signal	Through Hole
McGill Microwave Systems CBD17W5M65S60TX/AA	UL94 V-0	4	C DC	17W5	Flash	Flash	Male Pins Plug	Female Screwlock (4-40) Mating Side	7.5 A	Combo D-Sub	2	17	Coax Power	12	5	Gold	Tin Plated	Steel	Dust Tight Water Resistant Waterproof	IP65 IP67	Solder	Coax or Power Signal	Through Hole		Board Lock Shielded
McGill Microwave Systems CBD27W2M65S60T20	UL94 V-0	4	C DC	27W2	Flash	Flash	Male Pins Plug	Female Screwlock (4-40) Mating Side	7.5 A	Combo D-Sub	2	27	Coax Power	25	2	Gold			Dust Tight Water Resistant Waterproof	IP65 IP67	Solder	Coax or Power Signal	Through Hole	Clear Chromate Plated Zinc Steel	Board Lock Shielded
McGill Microwave Systems CBD13W3F35S50V3S/AA	UL94 V-0	3	B DB	13C3 13W3	Flash	Flash	Female Sockets Receptacle	Board Side (4-40)	7.5 A	Combo D-Sub	2	13	Coax Power	10	3	Gold			Dust Tight Water Resistant Waterproof	IP65 IP67	Solder	Coax or Power Signal	Through Hole	Passivated Stainless Steel
McGill Microwave Systems CBD2WK2F3600V50/AA	UL94 V-0	1	2W2C DE E	2V2	Flash	Flash	Female Sockets Male Pins Receptacle	Housing Shell (Unthreaded)	7.5 A	Combo D-Sub	1		Power			Gold			Dust Tight Water Resistant Waterproof	IP65 IP67	Solder	Power	Through Hole	Clear Chromate Plated Zinc Steel		2
McGill Microwave Systems CBD24W7M6500V30/AA	UL94 V-0	5	D DD	24W7	Flash	Flash	Male Pins Plug	Housing Shell (Unthreaded)	7.5 A	Combo D-Sub	2	24	Coax Power	17	7	Gold			Dust Tight Water Resistant Waterproof	IP65 IP67	Solder	Coax or Power Signal	Through Hole	Clear Chromate Plated Zinc Steel	Shielded
McGill Microwave Systems CBD17W5M20HE20	UL94 V-0	4	C DC	17W5	Flash	Flash	Male Pins Plug	Cable Side Male Jackscrew (4-40)	7.5 A	Combo D-Sub	2	17	Coax Power	12	5	Gold			Dust Tight Water Resistant Waterproof	IP65 IP67	Solder Cup	Coax or Power Signal	Free Hanging (In-Line)	Clear Chromate Plated Zinc Steel	Backshell Cable Clamp Mounting Hardware

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

CBD5W5F0000X/AA | Datasheet
